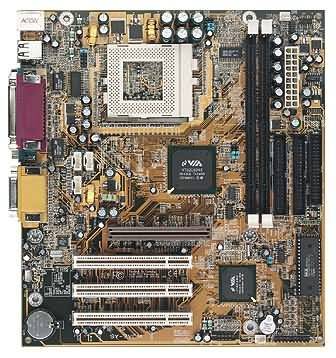

SY-7VCM- SOYO
Model SY-7VCM Description - 66/100/133MHz FSB Socket 370 Based MicroATX Motherboard Processor - FC-PGA 370 Pentium III Processors with 100/133MHz FSB - FC-PGA 370 Celeron Processors with 66MHz FSB Chipset - VIA 694X + 686A Chipset - Supports 66/100/133 MHz FSB System Memory - Two 168-pin SDRAM DIMM sockets support up to 1GB - Support PC-100/PC-133 SDRAM - Provides ECC (Error Checking Correction) capability Expansion Slots - Three 32-bit Bus Mastering PCI slots (V2.2 compliant) - One Universal AGP slot (support 1x/2x/4x mode) On Board Audio Subsystem - AC97 Codec on board to provide software audio solution Built-in Chipset Super I/O - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver Two Ultra DMA 33/ 66 IDE ports - Two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA 33/66 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, PnP, DMI, functions and Year 2000 compliant - Supports multiple-boot from E-IDE/ SCSI/ CD-ROM/ FDD/ LS120/ ZIP - 2 Mbit Flash ROM - SOYO AI-BIOS Board Dimensions - Four layers, 24.4 cm x 22.0 cm (9.6" x 8.7") - MicroATX form factor Enhanced PC Health Monitoring - On-board voltage monitors for CPU Vcore, VTT, +5v, +12V - CPU fan speed control & monitor - Precision CPU temperature monitoring through CPU on-die thermal diode Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - One D-Sub 25-pin female printer port - Two serial port - Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 - One game port FCC Class B and CE EMI Regulation Compliant PC99 ACPI Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
