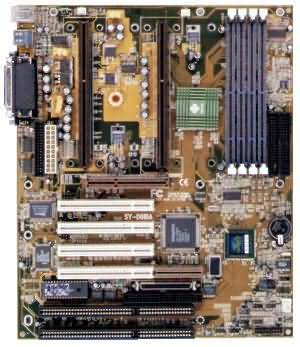

SY-D6IBA- SOYO
Model SY-D6IBA Description - Dual 100MHz FSB Pentium II Processor Based ATX Mainboard with AGP Port and Ultra Wide SCSI Processor Supports the following processors - 100MHz FSB Pentium III 450/500* MHz - 100MHz FSB Pentium II 350/400/450* MHz - 66MHz FSB Pentium II 233/266/300/333 MHz * This mainboard is designed to be able to support up to Pentium II 500MHz processors. However, the Pentium II 500MHz processor is not available yet at this moment for testing. Chipset - Intel 82440BX two chip AGPset System Memory - Four 168-pin SDRAM DIMM sockets support up to 1GB - Provides ECC (Error Checking Correction) capability Expansion Slots - Four 32-bit Bus Mastering PCI slots (v2.1 compliant) - Two 16-bit ISA slots - One AGP Slot (v1.0 compliant) On Board Ultra I/O Chip - Winbond 977TF I/O chip - Two RS-232 serial ports (16550 UART compatible) - One Parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88MB FDD) - Provides IrDA port with optional cable for transceiver Ultra Wide SCSI with RAIDport On Board - Built-in AIC-7880 SCSI controller - One 50-pin Ultra SCSI(8-bit) port, supports up to 7 SCSI devices, and up to 20Mbps transfer rate - One 68-pin Ultra Wide SCSI (16-bit) port, supports up to 15 SCSI devices, and up to 40Mbps transfer rate - One 60-pin Adaptec RAIDport Two Ultra DMA-33 IDE ports - Supports two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA/33 - Two PCI bus mastering ATA E-IDE ports Board Dimensions - Four layers, 30.5 cm x 25 cm (12" x 9.8") - ATX form factor Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, plug and play, DMI functions - Supports multiple-boot from E-IDE / SCSI /CD-ROM / FDD / LS120 / ZIP, and Year 2000 compliant - 2 Mbit Flash ROM Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - Two D-Sub 9-pin male Serial ports - One D-Sub 25-pin female printer port FCC Class B and CE EMI Regulation Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
