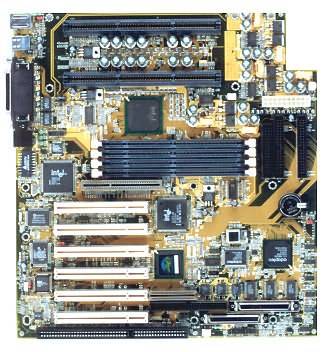

SY-D6IGA- SOYO
Model SY-D6IGA Description - 100MHz FSB Dual Pentium II Xeon Processors Based Mainboard with AGP Port, 10Base-T/100BASE-TX PCI Bus LAN, Ultra 2 SCSI and 6 Bus Mastering PCI Slots Processor - Dual Pentium II Xeon 400/450/500* MHz Processors with 100MHz FSB; 512KB/1MB/2MB full speed L2 cache Chipset - Intel 82440GX two chip AGPset System Memory - Four 168-pin SDRAM DIMM sockets support up to 2GB - Provides ECC (Error Checking Correction) capability Expansion Slots - Six 32-bit Bus Mastering PCI slots (v2.1 compliant) - One 16-bit ISA slot - One AGP Slot (v1.0 compliant) On Board Ultra I/O Chip - Winbond W83977EF I/O chip - Two RS-232 serial ports (16550 UART compatible) - One Parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88MB FDD) - Provides IrDA port with optional cable for transceiver Ultra 2 SCSI - Built-in AIC-7890 SCSI controller and AIC-3860 chip - One 50-pin Ultra SCSI (8-bit) port, supports up to 7 SCSI devices, and up to 20MB/s transfer rate - One 68-pin Ultra Wide SCSI (16-bit) port, supports up to 15 SCSI devices, and up to 40MB/s transfer rate - One 68-pin Ultra 2 SCSI (16-bit) port, supports up to 15 SCSI Devices (external or internal), and up to 80MB/s transfer rate Advanced LAN Chip On Board - Intel's 82558 supports dual mode 10BASE-T/100BASE-TX PHY to deliver the best performance - Media Access Controller with internal transmit and receive FIFOs provide the reliable capabilities. - Integrated system and power management features - Digitally controlled adaptive equalization and transmission - Alert on LAN capability ( Optional) Two Ultra DMA-33 IDE ports - Supports two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA/33 Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, plug and play, DMI functions, and Year 2000 compliant - Supports multiple-boot from E-IDE / SCSI /CD-ROM / FDD / LS120 / ZIP - 2 Mbit Flash ROM PC Health Monitoring - Seven on-board voltage monitors for CPU core, CPU I/O, +5V, -5V, +12V, -12V, and 3.3V - Supports up to 4 speeds of fan control Fan speed monitor - Flexible thermistor or CPU on-die thermal diode for CPU temperature monitoring - Battery low detection Board Dimensions - Six layers, 30.5 cm x 28 cm (12" x 11") Custom ATX form factor Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - Two D-Sub 9-pin male Serial ports - One D-Sub 25-pin female printer port - One RJ-45 LAN port FCC Class B and CE EMI Regulation Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
