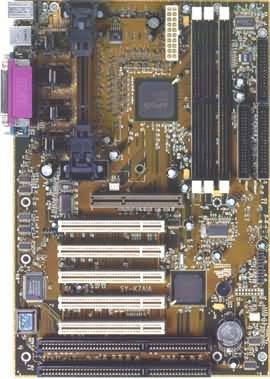

SY-K7AIA- SOYO
Model SY-K7AIA Description - 200MHz System Interface Speed Slot-A Based AMD-750 ATX Motherboard Processor - Single Slot-A for AMD-K7 Processor 500MHz ~650MHz and faster - 128Kbyte L1 cache built-in - 512Kbyte L2 cache built-in - 200MHz System interface Speed - Auto-detect Processor Voltage - Clock multiplier 5.0 to 10 - ECC Protection on system and cache interfaces Chipset - AMD-750 AGP chipset System Memory - Three 168-pin SDRAM 3.3V DIMM sockets support up to 768MB - PC100 DIMM support - Provides ECC (Error Checking Correction) capability Expansion Slots - Five 32-bit Bus Mastering PCI slots (V2.2 compliant) - Two 16-bit ISA slots (one shared ISA/PCI slot) - One AGP slot (v1.0 compliant, AGP 1X/2X) On Board Ultra I/O Chip - Winbond W83977ATF chip - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver Ultra DMA 33 & 66 IDE Ports - Two independent channels for four IDE devices - Supports up to PIO Mode 4 and UDMA/66 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - AMD/Award PCI BIOS with ACPI function - Supports multiple-boot from E-IDE/ SCSI/ CD-ROM/ FDD/ LS120/ ZIP - 2 Mbit Flash ROM Board Dimensions - Six layers, 30.5 cm x 21 cm (12ˇ¨ x 8.2ˇ¨) - ATX form factor Enhanced PC Health Monitoring - Winbond W83782D chip - On-board voltage monitors for +5V, -5V, +12V, -12V and processor status - System health status detect - System temperature sensor - CPU temperature monitoring through flexible thermal sensor under processor heatsink Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Four USB ports - Two D-Sub 9-pin male serial ports - One D-Sub 25-pin female printer port FCC Class B and CE EMI Regulation Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
