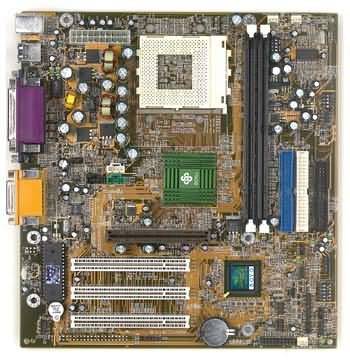

SY-K7VMM- SOYO
Model SY-K7VMM Description - 200MHz System Interface Speed AMD Socket-A Based VIA KM133 MicroATX Motherboard Processor - Single Socket-A for AMD Socket-A type Processor - Including Duron and Thunderbird Chipset - VIA KM133 and 686A chipset System Memory - Two 168-pin SDRAM 3.3V DIMM sockets support up to 1GB - PC100/PC133 SDRAM support - Provides ECC (Error Checking Correction) capability Expansion Slots - Three 32-bit Bus Mastering PCI slots (V2.2 compliant) - One AGP slot (v1.0 compliant, AGP 1X/2X/4X) Embedded AGP Graphics - Chipset embedded S3 Savage 4 AGP capacity AC97 CODEC ˇV Built in Audio subsystem - Built in AC97 codec for audio subsystem On Board Ultra I/O Chip - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver Ultra DMA 33 & 66 IDE Ports - Two independent channels for four IDE devices - Supports up to PIO Mode 4 and UDMA/66 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with ACPI function - Supports multiple-boot from E-IDE/ SCSI/ CD-ROM/ FDD/ LS120/ ZIP - 2 Mbit Flash ROM Board Dimensions - Four layers, 24.4 cm x 24 cm(9" x 9") - MicroATX form factor Enhanced PC Health Monitoring - On-board voltage monitors for +5V, +12V, VCORE, VTT and VBAT status - System health status detect - System temperature sensor - CPU temperature monitoring through flexible thermal sensor under processor heatsink Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - One D-Sub 9-pin male serial ports - One VGA connector - One D-Sub 25-pin female printer port - Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 - One game port FCC Class B and CE EMI Regulation Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
