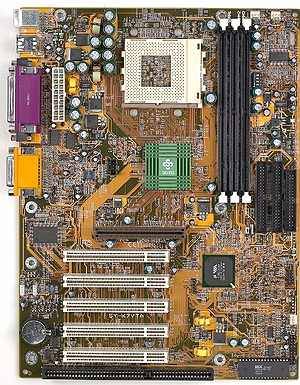

SY-K7VTA-B- SOYO
Model SY-K7VTA-B Description - 200MHz System Interface Speed AMD Socket-A Based VIA KT133 chipset ATX Motherboard Processor - Single Socket-A (Socket 462) AMD Processor - Including Duron and Thunderbird Chipset - VIA VT8363 and VT82C686B chipsets System Memory - Three 168-pin SDRAM 3.3V DIMM sockets support up to 1.5GB - PC100/PC133 SDRAM support - Provides ECC (Error Checking Correction) capability Expansion Slots - Five 32-bit Bus Mastering PCI slots (V2.2 compliant) - One 16-bit ISA slots - One AGP slot (v1.0 compliant, AGP 1X/2X/4X) On Board Audio Subsystem - AC97 CODEC on board to provide audio solution On Board Ultra I/O Chip - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver - Provides 4 USB ports (2 rear, 2 front) Ultra DMA IDE Ports - Two independent channels for four IDE devices - Supports up to PIO Mode 4 and UDMA 33/66/100 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with ACPI function - Supports multiple-boot from E-IDE/ SCSI/ CD-ROM/ FDD/ LS120/ ZIP - 2 Mbit Flash ROM Board Dimensions - Four layers, 30.5 cm x 23 cm(12" x 9.05") - ATX form factor Enhanced PC Health Monitoring - On-board voltage monitors for +5V, +12V, VCORE, +2.5V, +3.3V - System health status detect - System temperature sensor - CPU temperature monitoring through flexible thermal sensor Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - Two D-Sub 9-pin male serial ports - One D-Sub 25-pin female printer port - Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 - One game port FCC Class B and CE EMI Regulation Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
