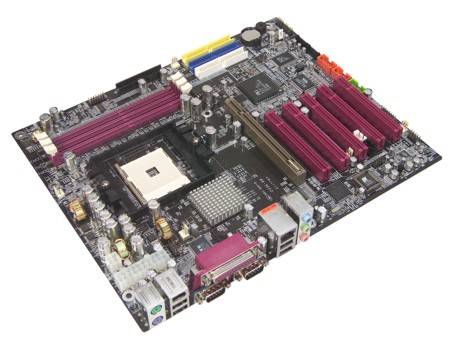

SY-K8USA DRAGON Ultra - SOYO
AMD Socket-754 Athlon 64 Based on AMD 8151 Chipset ATX Motherboard Supporting 400 MHz FSB, DDR400/333, 6-ch audio, 8X AGP PRO, overclock capability, 10/100/1000 Mbps Giga LAN, USB 2.0, Serial ATA, IEEE 1394 Specifications -------------------------------------------------------------------------------- Processor Click here for maximum CPU support Click here for maximum Front Side Bus (FSB) support Interface Socket 754 Chipset Description AMD 8151 (ALI M1687) / M1563 chipset Supports 266/333/400 MHz FSB Graphics Info AGP slot supporting up to 8X AGP PRO Form Factor ATX Memory Type DDR400/333/266 SDRAM Memory Description Three 184-pin DDR 2.5V DIMM sockets support up to 2GB (DDR 266/333/400) Click here for memory speed/CPU FSB compatibility information Expansion Slots Five 32-bit Bus Mastering PCI slots (V2.2 compliant) One Universal 8X AGP PRO slot (supports 8x/4x modes) Expansion Slot Types Five 32-bit Bus Mastering PCI IDE Type UDMA 66/100/133 IDE Description 3 independent channels for six IDE devices (one for RAID) 2 channels Serial ATA IDE ports with RAID capability Supports RAID 0, 1 Supports up to PIO mode 5 & Ultra DMA 66/100/133 IEEE1394 Description 2 pin headers (VIA 6306 chipset) Audio Description On board CMI 9739 AC97 Codec 6 channels audio solution IO Port Description Two RS-232 serial ports (16550 UART compatible) One parallel printer port (SPP/EPP/ECP mode) One FDD port (supports 3 modes, 1.2/1.44/2.88MB FDD) Provides FIR port with optional cable for transceiver Provides 6 USB 2.0 ports (4* rear, 2 pin header) Provides 3 IEEE 1394 (2 pin header) IO Connection Description PS/2 Mini-DIN mouse & keyboard ports Two USB 2.0 ports One embedded RJ45 LAN connector (10/100/1000) GigaLAN One IEEE 1394 Firewire port Two D-Sub 9-pin male serial ports One D-Sub 25-pin female printer port Audio I/O: LINE-OUT x 1, LINE-IN x 1, MIC JACK x 1 BIOS Description Award PCI BIOS with ACPI function Supports multiple-boot from E-IDE / SCSI / CD-ROM / FDD / LS120 / ZIP 2 Mbyte Flash ROM Health Monitoring Description On board voltage monitors CPU fan speed monitor CPU temperature monitoring through thermal sensor CPU overheating protection Dimension Description Four layers, 30.5 cm x 24.5 cm (12" x 9.6") ATX form factor Certification FCC Class B & CE EMI Regulation Compliant. Compatibilities WinXP / Win2000 / WinNT / WinME / Win98SE / Linux / FreeBSD Warranty All SOYO products are designed to offer stability and flexibility, and are tested to ensure highest reliability. We offer a 1 year limited warranty on this SOYO product. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
