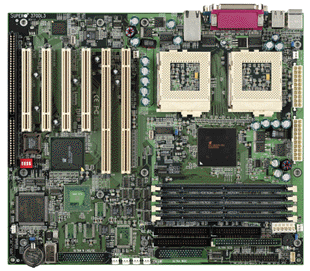

SUPER 370DLE - Supermicro
Target Segment Mid or entry-level servers Form Factor ATX with PC99 color-coded double-deck I/O Size: 12" x 10.25" (W x H) Processor Support Dual or single Intel 370-pin Pentium III 1.10 GHz-500 MHz processors Chipset ServerWork Serverset III LE Front Side Bus 133/100MHz Memory Four 3.3 volt, 168-pin registered DIMM sockets (PC100 or PC133) Up to 4 GB ECC registered SDRAM memory Supports only registered ECC memory. Non-ECC or unbuffered SDRAM are not supported. I/O Expansion 2 64-bit 66/33MHz PCI bus mastering slots 4 32-bit 33MHz PCI bus mastering slots 1 16-bit ISA slot Onboard Devices Intel 82559 Ethernet controller Two Ultra DMA (UDMA/33) bus master/EIDE channels support data transfer rates of up to 33 MB/sec Dual USB (Universal Serial Bus) ports PS/2 keyboard and PS/2 mouse connectors Two 16550 UART compatible serial ports One ECP/EPP parallel port One floppy port Chassis Compatibility Extended ATX chassis Fits SC860, SC850, SC840, SC830, SC821, SC760P4, SC750P4 chassis PC Health Monitoring Seven onboard voltage monitors for CPU core, +2.5V, +3.3V, + 5V and + 12V Fan status monitor CPU/chassis temperature monitoring CPU fan auto-off in sleep mode CPU overheat LED header LED and control for chassis intrusion detection System resource alert Support for system management software Auto-switching voltage regulator for CPU core, up to 20A of current Special Feature Wake-on-LAN allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing the network. Onboard auto-switching power regulator supports CPU core voltages from 1.3 ~ 3.5 volts Seven tachometer fan connectors (two CPU, four chassis fan connectors and one thermal control overheat fan connector) Onboard overheat buzzer Overheat LED indication connector CPU frequency settings in BIOS setup Power-up mode control upon recovery from AC power loss BIOS Feature Supports ACPI (Advanced Configuration and Power Interface) and APM (Advanced Power Management) Slow blinking LED for Sleep State indicator Main switch override mechanism. Power-up mode control upon recovery from AC power loss PC Health Monitoring protects your system from problems even before they occur. DMI support ACPI/APM power management RTC (Real-Time Clock) wakeup External modem remote ring-on when system is in Soft-Off state BIOS rescue hot keys for rescuing BIOS chip from flash failure Hardware BIOS virus protection 4 Mb flash ROM (AMI BIOS) Other Feature ACPI/APM power management AOL2 is optional Internal/external modem ring-on Control of power-on mode for recovery from AC power loss One WOL (Wake-On-LAN) connector One chassis intrusion connector Standard Retail Package One SUPER 370DLE mainboard One three-ended 40-pin IDE ribbon cable One floppy ribbon cable Two CPU cooling fans One backpanel I/O shield One BIOS/drivers CD CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
