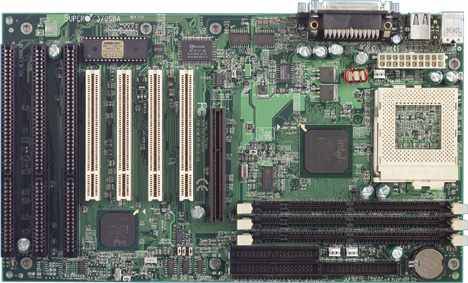

SUPER 370SBA - Supermicro
SUPER 370SBA running at bus speed of 66/100* MHz, supports single Intel Celeron PPGA (Plastic Pin Grid Array) 333/366/400/433/466/500 MHz processors* 370SBA is based on Intel’s 440BX chipset, enabling AGP, 66/100* MHz SDRAM, concurrent PCI and Ultra DMA with 33 MB/s burst data transfer rate. * The motherboard hardware design does not support Pentium III FCPGA. To support Pentium III FCPGA processors, please use 810e chipset based motherboards SUPER 370SBA comes with 4 PCI, 3 ISA(including one ISA/PCI shared slot), and an AGP connector. AGP reduces contention with the CPU and I/O devices by broadening the bandwidth of graphics to memory. It delivers a maximum of 532 MB/s 2x transfer mode which is quadruple the PCI speed. AGP offers a quantum-leap improvement in 3D graphics performance with far richer texture content! SUPER 370SBA in an ATX size (12” x 7”) form factor that can accommodate a total of 768 MB EDO memory at 66 MHz or 768 MB Registered DIMM / 384 MB unbuffered SDRAM memory at 66/100*MHz with 3 168-pin DIMM sockets. Included I/O are 2 EIDE ports, a floppy port, an ECP/EPP parallel port, PS/2 mouse and PS/2 keyboard, 2 serial ports, an infrared port and 2 USB ports. * The motherboard hardware design does not support Pentium III FCPGA. To support Pentium III FCPGA processors, please use 810e chipset based motherboards Other features that maximize customer satisfaction and provide simplicity in managing the computer are PC 98-ready and support for Advanced Configuration and Power Interface (ACPI). With PC Health Monitoring, you can protect your system from problems even before they occur. Overheat LED indication connector Three tachometer fan connectors which includes a thermal control tachometer fan connector for preventing system overheat. On-board switching power regulator Wake-on-LAN allows remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing the network. DMI support ACPI/APM power management RTC wakeup External modem ring-on Keyboard wake-up Power-up mode control at recovery from AC power loss Simple jumper setting 2Mb AMI BIOS PC Health Monitoring Seven on-board voltage monitors for CPU core/s, CPU I/O, +3.3V, ± 5V, and ± 12V Three fan status monitors with firmware/software control on/off CPU/chassis temperature monitoring CPU fan auto-off in sleep mode CPU overheat alarm, LED and control Chassis intrusion detection System resource alert Support SUPER Doctor and Intel LANDesk® Client Manager Hardware BIOS virus protection Switching voltage regulator for CPU core, up to 20A current ACPI/PC 98 Features Microsoft OnNow Slow blinking LED for sleep-state indicator BIOS boot support for USB KB Real time clock wake-up alarm Main switch override mechanism Remote modem ring-on if system is in SoftOff state SUPER 370SBA comes with a CD loaded with software utilities such as: SUPERMICRO PIIX4 Upgrade Utility for Win 95, BIOS Flash Upgrade Utility, DMI Browser for Win 95, DMI Wizard, SUPERMICRO SUPER Doctor Utility Ver.2.1, and optional Intel LANDesk Client Manager for Windows 9x/NT. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
