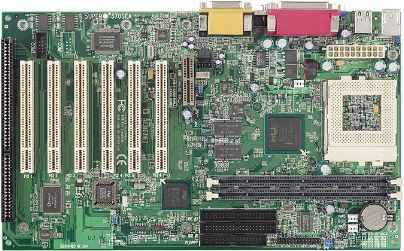

SUPER 370SEA - Supermicro
Target Segment Home/office desktop PCs offering excellent flexibility and upgrade capability at a low cost Form Factor ATX with PC99 color-coded double-deck I/O Size: 12" (W) x 7.2" (H) Processor Support Single Intel Pentium III FCPGA 933-550 MHz or Celeron 370-pin PPGA 333 ~ 500 MHz processors Chipset Intel’s 810E Whitney Chipset (82810E GMCH + 82801AA ICH) Front Side Bus (FSB) 133/100/66 MHz Memory Two 3.3 volt, 168-pin DIMM sockets Up to 512 MB unbuffered SDRAM Stand-by voltage to support STR (Suspend to RAM) I/O Expansion Slots One AMR (Audio Modem Riser) Six 32-bit PCI bus mastering slots at 33 MHz with suspend voltage One 16-bit ISA slots (One PCI and one ISA are shared.) Onboard Devices Built-in 3D/2D accelerated graphics controller with 4 MB display cache supports resolutions of up to 1280 x 1024 x 16-bit colors at a 75 Hz refresh rate or 1024 x 768 x 24-bit true colors at an 85 Hz refresh rate Built-in flat panel LED control chip and connector support direct digital LED monitor Two Ultra DMA (UDMA/66) bus master/EIDE channels support data transfer rates of up to 66 MB/sec AC'97 2.1 compliant link for audio and telephony CODECs Dual USB (Universal Serial Bus) ports PS/2 keyboard and PS/2 mouse connectors Two 16550 UART compatible serial ports One ECP/EPP parallel port One floppy port Other Features One WOL (Wake-On-LAN) connector One infrared connector One chassis intrusion connector (OEM option only) Chassis Compatibility Standard ATX chassis Fits Super Micro's SC501-A, SC-701A, SC-730A, SC750P4 and SC760P4, SC821 Standard Retail Package One SUPER 370SEA Mainboard One ball bearing fan with tachometer signal input One three-ended 80-wire/40-pin IDE UDMA/66 ribbon cable for high speed UDMA IDE devices One five-ended floppy ribbon cable One compact disc that includes: SUPER Doctor Utility DMI Browser for Windows DMI Wizard 810 chipset and graphics drivers Audio driver BIOS Flash Upgrade Utility Pictures Picture 1 (small, 41 KB), Picture 2 (large, 114 KB) Related Links Jumper Settings Users' & BIOS Manual in PDF format English BIOS file and BIOS flash utility Technical Support Special Features Suspend to RAM (STR): All tasks are stored in RAM and can be resumed within seconds from the minimum power consuming suspend mode. Wake-on-LAN allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing the network. Onboard auto-switching power regulator supports CPU core voltages from 1.3 ~ 3.5 volts Three tachometer fan connectors (two CPU/chassis fan connectors and one thermal control fan connector) Keyboard wake-up from Soft-Off Overheat LED indication connector CPU frequency settings in BIOS setup Power-up mode control upon recovery from AC power loss BIOS Features Supports ACPI ( Advanced Configuration and Power Interface) and APM (Advanced Power Management) Microsoft OnNow Slow blinking LED for sleep-state indicator Main switch override mechanism. Power-up mode control upon recovery from AC power loss BIOS boot support for USB keyboards With PC Health Monitoring, you can protect your system from problems even before they occur Three tachometer fan connectors, including a thermal control tachometer fan connector for preventing system overheating DMI support ACPI/APM power management RTC (Real-Time Clock) wakeup External modem remote ring-on when system is in Soft-Off state BIOS rescue hot keys for rescuing BIOS chip from flash failure Hardware BIOS virus protection 4 Mb Firmware Hub (AMI BIOS) PC Health Monitoring Seven onboard voltage monitors for CPU core/s, CPU I/O, +3.3V, ± 5V and ± 12V Three-fan status monitor with firmware/software on/off control CPU/chassis temperature monitoring CPU fan auto-off in sleep mode CPU overheat alarm LED and control for chassis intrusion detection System resource alert Support for SUPER Doctor and Intel LANDesk® Client Manager Auto-switching voltage regulator for CPU core, up to 20A of current CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
