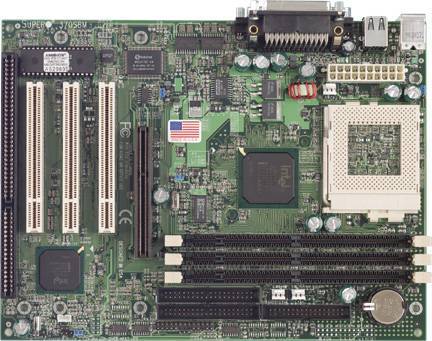

SUPER 370SLM - Supermicro
SUPER 370SLM running at bus speed of 66 MHz, supports single Intel Celeron PPGA(Plastic Pin Grid Array) 333/366/400/433/466 MHz processors. 370SLM is based on Intel’s 440LX chipset, enabling AGP, 66 MHz SDRAM, concurrent PCI and Ultra DMA with 33 MB/s burst data transfer rate. SUPER 370SLM comes with 3 PCI, 1 ISA(including one ISA/PCI shared slot), and an AGP connector. AGP reduces contention with the CPU and I/O devices by broadening the bandwidth of graphics to memory. It delivers a maximum of 532 MB/s 2x transfer mode which is quadruple the PCI speed. AGP offers a quantum-leap improvement in 3D graphics performance with far richer texture content! SUPER 370SLM in an Micro ATX size (9.6” x 7.25”) form factor that can accommodate a total of 768 MB 3.3V EDO or 384 MB unbuffered SDRAM memory at 66 MHz with 3 168-pin DIMM sockets. Included I/O are 2 EIDE ports, a floppy port, an ECP/EPP parallel port, PS/2 mouse and PS/2 keyboard, 2 serial ports, an infrared port and 2 USB ports. Other features that maximize customer satisfaction and provide simplicity in managing the computer are PC 98-ready and support for Advanced Configuration and Power Interface (ACPI) for Windows98 SE. With PC Health Monitoring, you can protect your system from problems even before they occur. Overheat LED indication connector Three tachometer fan connectors which includes a thermal control tachometer fan connector for preventing system overheat. On-board switching power regulator Wake-on-LAN allows remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing the network. DMI support ACPI/APM power management RTC wakeup External modem ring-on Keyboard wake-up Power-up mode control at recovery from AC power loss Simple jumper setting 2Mb AMI BIOS PC Health Monitoring Seven on-board voltage monitors for CPU core/s, CPU I/O, +3.3V, ± 5V, and ± 12V Three fan status monitors with firmware/software control on/off CPU/chassis temperature monitoring CPU fan auto-off in sleep mode CPU overheat alarm, LED and control Chassis intrusion detection System resource alert Support SUPER Doctor and Intel LANDesk® Client Manager Hardware BIOS virus protection Switching voltage regulator for CPU core, up to 20A current ACPI/PC 98 Features Microsoft OnNow Slow blinking LED for sleep-state indicator BIOS boot support for USB KB Real time clock wake-up alarm Main switch override mechanism Remote modem ring-on if system is in SoftOff state SUPER 370SLM comes with a CD loaded with software utilities such as: SUPERMICRO PIIX4 Upgrade Utility for Win 95, BIOS Flash Upgrade Utility, DMI Browser for Win 95, DMI Wizard, SUPERMICRO SUPER Doctor Utility Ver.2.1, and optional Intel LANDesk Client Manager for Windows 9x/NT. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
