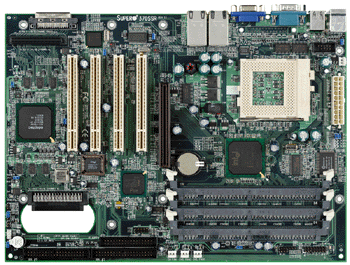

SUPER 370SSR - Supermicro
Target Segment entry-level servers or workstation Form Factor ATX with PC99 color-coded double-deck I/O Size: 12" x 8.7" (W x H) Processor Support Single Intel 370-pin Pentium III 1.10GHz-500MHz processor Single Intel Celeron 900MHz-333MHz processor Chipset Intel 815e chipset Front Side Bus 133/100/66MHz Memory Three 3.3 volt, 168-pin DIMMs (25-degree sockets) Up to 512 MB unbuffered SDRAM PC 133/100 Standby voltage to support STR (Suspend to RAM) I/O Expansion 4 32-bit 33MHz PCI bus mastering slots 1 4xAGP slot Onboard Devices Adaptec AIC-7899W (7902 future option) Dual channel Ultra160 (320) SCSI Two Intel 82559 Ethernet Two Ultra DMA (UDMA/100) bus master/EIDE channels that support an IDE drive data transfer rate of 100 MHz 4 USB (Universal Serial Bus) ports (two onboard connectors and two headers) PS/2 keyboard and PS/2 mouse connectors Two fast UART 16550 compatible serial ports One ECP/EPP parallel port One floppy port Direct AGP w/optional AIMM 4MB display cache Chassis Compatibility ATX chassis Fits SC822, SC811 chassis PC Health Monitoring Five onboard voltage monitors for CPU core, +2.5V, +3.3V, +5V and +12V Fan status monitor CPU/chassis temperature monitoring CPU fan auto-off in sleep mode CPU overheat LED header LED and control for chassis intrusion detection System resource alert Support for system management software Auto-switching voltage regulator for CPU core, up to 20A of current Special Feature Suspend to RAM (STR): All tasks are stored in RAM and can be resumed within seconds from the minimum power consuming suspend mode. Wake-on-LAN allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing the network. Onboard auto-switching power regulator supports CPU core voltages from 1.3-3.5 volts Three tachometer fan connectors (for CPU, chassis and thermal control fans) Keyboard wake-up from Soft-Off CPU frequency settings - changeable in BIOS setup Connector for LED overheat indicator BIOS Feature Supports ACPI (Advanced Configuration and Power Interface) and APM (Advanced Power Management) Microsoft OnNow Slow blinking LED for sleep-state indicator Main switch override mechanism. Power-up mode control upon recovery from AC power loss BIOS boot support for USB keyboards PC Health Monitoring, which allows you to protect your system from problems even before they occur Three tachometer fan connectors, including one for a thermal control tachometer fan to prevent system from overheating DMI support ACPI/APM power management RTC (Real-Time Clock) wakeup External modem remote ring-on when system is in Soft-Off state BIOS rescue hot keys for rescuing the BIOS chip from flash failure Hardware BIOS virus protection 4 Mb Firmware Hub (AMI BIOS) Other Feature One WOL (Wake-On-LAN) connector One infrared connector One chassis intrusion connector (OEM option only) Standard Retail Package One SUPER 370SSR mainboard One ball bearing fan with tachometer signal input One COM2 cable One floppy ribbon cable One three-ended 80-wire/40-pin IDE UDMA/100 ribbon cable for high speed UDMA IDE devices I/O back panel shield One BIOS/drivers CD CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
