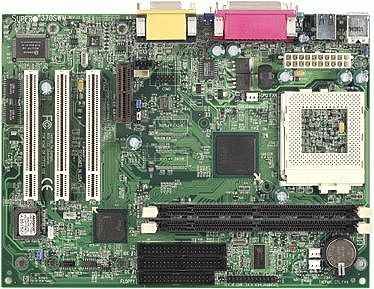

SUPER 370SWM - Supermicro
Form Factor MicroATX with PC99 color-coded double-deck I/O ports Size: 9.6" (W) x 7.125" (H) Processor Support Single Celeron PPGA (Plastic Pin Grid Array)/FCPGA 333 - 800 MHz processors (only with PCB revision 2.3 and manufactured after November, 1999 can support FCPGA processors.) Chipset Intel 810 "Whitney" chipset (82810 GMCH0 + 82801AB ICH0) Front Side Bus (FSB) Speed 100*/66 MHz (Celeron 100 MHz FSB processors are not available yet.) Memory Two 3.3 volt, 168-pin DIMM sockets Up to 512 MB unbuffered SDRAM Standby voltage to support STR (Suspend to RAM) I/O Expansion Slots One AMR (Audio Modem Riser) Three 32-bit PCI bus mastering slots at 33 MHz with suspend voltage Onboard Devices Built-in 3D/2D accelerated graphics controller supports resolutions of up to 1280 x 1024 x 16-bit colors at a 75 Hz refresh rate or 1024 x 768 x 24-bit true colors at an 85 Hz refresh rate AC'97 2.1 compliant link for audio and telephony CODECs Dual USB (Universal Serial Bus) ports Two Ultra DMA (UDMA/33) bus master/EIDE channels PS/2 keyboard and PS/2 mouse connectors Two 16550 UART compatible serial ports One ECP/EPP parallel port One floppy port Other Features One WOL (Wake-On-LAN) connector One infrared connector One chassis intrusion connector (OEM option only) Chassis Compatibility Standard MicroATX or ATX chassis Fits Super Micro's SC350, SC730, SC821 Standard Retail Package Contents One SUPER 370SWM Mainboard One ball bearing fan with tachometer signal input One floppy ribbon cable One three-ended IDE ribbon cable One compact disc that includes SUPER Doctor Utility DMI Browser for Windows DMI Wizard 810 chipset and graphics drivers Audio driver BIOS Flash Upgrade Utility Pictures Picture 1 (small, 39 KB), Picture 2 (large, 85 KB) Related Links Jumper Settings Users' & BIOS Manual in PDF format English French Germany BIOS file and BIOS flash utility Technical Support Special Features Suspend to RAM (STR): All tasks are stored in RAM and can be resumed within seconds from the minimum power consuming suspend mode. Wake-on-LAN allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing the network. Onboard auto-switching power regulator supports CPU core voltages of from 1.3 ~ 3.5 volts Three tachometer fan connectors (for CPU, chassis and thermal control fans) Keyboard wake-up from Soft-Off CPU frequency settings - changeable in BIOS setup Connector for LED overheat indicator BIOS Features Supports ACPI ( Advanced Configuration and Power Interface) and APM (Advanced Power Management) Microsoft OnNow Slow blinking LED for sleep-state indicator Main switch override mechanism. Power-up mode control upon recovery from AC power loss BIOS boot support for USB keyboards PC Health Monitoring, which allows you to protect your system from problems even before they occur. Three tachometer fan connectors, including one for a thermal control tachometer fan to prevent system overheating. DMI support ACPI/APM power management RTC (Real-Time Clock) wakeup External modem remote ring-on when system is in Soft-Off state BIOS rescue hot keys for rescuing BIOS chip from flash failure Hardware BIOS virus protection 4 Mb Firmware Hub (AMIBIOS) PC Health Monitoring Seven onboard voltage monitors for CPU core, CPU I/O, +3.3V, ± 5V and ± 12V Three-fan status monitor with firmware/software on/off control CPU/chassis temperature monitoring CPU fan auto-off in sleep mode CPU overheat alarm LED and control for chassis intrusion detection System resource alert Support for SUPER Doctor and Intel LANDesk® Client Manager Auto-switching voltage regulator for CPU core, up to 20A current CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
