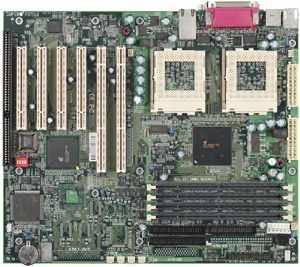

SUPER P3TDLE - Supermicro
Target Segment Mid-end or entry-level servers Form Factor ATX with PC99 color-coded double-deck I/O Size: 12" x 10.25" (W x H) Processor Support Dual or single Intel Pentium III family 500MHz - 1.26+GHz processors Chipset ServerWorks ServerSet III LE Chipset Front Side Bus (FSB) 133 /100 MHz Memory Four 3.3 volt, 168-pin registered DIMM sockets (PC100 or PC133) Up to 4 GB registered ECC DIMMs memory Note: Supports only registered ECC memory. Non-ECC or unbuffered SDRAM are not supported. (Memory recommendation list) I/O Expansion Slots Two 64-bit, 66/33 MHz PCI bus mastering slots Four 32-bit PCI bus mastering slots at 33 MHz One 16-bit ISA slot Onboard Devices Onboard Intel 82559 Ethernet controller Two Ultra DMA (UDMA/33) bus master/EIDE channels support data transfer rates of up to 33 MB/sec Dual USB (Universal Serial Bus) ports PS/2 keyboard and PS/2 mouse connectors Two 16550 UART compatible serial ports One ECP/EPP parallel port One floppy port Other Features One WOL (Wake-On-LAN) connector One chassis intrusion connector Chassis Compatibility Full ATX chasiss Fits Super Micro SC860, SC850, SC840, SC830, SC821, SC760P4,and SC750P4 chassis Standard Retail Package One SUPER P3TDLE Motherboard One three-ended 40-pin IDE ribbon cable One floppy ribbon cable Two CPU cooling fans One backpanel I/O shield One compact disc or set of diskettes that includes: Ethernet drivers BIOS flash upgrade utility Pictures Picture 1 (318KB) Related Links Jumper Settings User's & BIOS Manual in PDF format English BIOS file and BIOS flash utility Technical Support Technical Notes Special Features Wake-on-LAN allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing the network. Onboard auto-switching power regulator supports CPU core voltages from 1.3 ~ 3.5 volts Seven tachometer fan connectors (two CPU, four chassis fan connectors and one thermal control overheat fan connector) Onboard overheat buzzer Overheat LED indication connector CPU frequency settings in BIOS setup Power-up mode control upon recovery from AC power loss BIOS Features Supports ACPI (Advanced Configuration and Power Interface) and APM (Advanced Power Management) Slow blinking LED for Sleep State indicator Main switch override mechanism. Power-up mode control upon recovery from AC power loss PC Health Monitoring protects your system from problems even before they occur. DMI support ACPI/APM power management RTC (Real-Time Clock) wakeup External modem remote ring-on when system is in Soft-Off state BIOS rescue hot keys for rescuing BIOS chip from flash failure Hardware BIOS virus protection 4 Mb flash ROM (AMI BIOS) PC Health Monitoring Seven onboard voltage monitors for CPU core(s), + 5V and + 12V Fan status monitor CPU/chassis temperature monitoring CPU fan auto-off in sleep mode CPU overheat LED header LED and control for chassis intrusion detection System resource alert Support for system management software Auto-switching voltage regulator for CPU core, up to 20A of current CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
