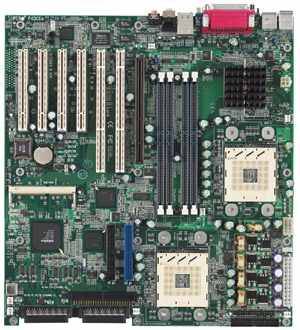

SUPER P4DC6(+) - Supermicro .jpg)
Target Segment High-end workstation, server, and internet application Form Factor Extended ATX Size: 12" x 13" (W x H) Processor Support Intel 603-pin Xeon CPU 1.5-2.0GHz+ Chipset Intel 860 chipset Front Side Bus 400 MHz Memory Dual Channel 600/800 MHz RDRAM with Transfer Rate up to 3.2 GB/s Four 184-pin RIMMs for 600/800 MHz RDRAM up to 2 GB Two Rambus Inline memory modules of the same memory size are the minimum requirement. (Memory recommendation list) I/O Expansion 2 64-bit 66MHz PCI 4 32-bit 33MHz PCI 1 4xAGP Pro 1.5V Onboard Devices Adaptec Zero-channel SCSI RAID controller option ('+' version only) Dual EIDE ports support Ultra DMA 100MB/s of Burst data transfer rate, supports UDMA Mode 5, PIO Mode 4 and ATAPI AC97' Audio Onboard Adaptec AIC-7899W (7902 future option) dual channel Ultra160 (320) SCSI controller Intel 82559 LAN controller PC hardware health monitoring 1 Floppy 2 Fast UART 16550 serial ports 1 ECP/EEP parallel port 1 Infrared header Up to 4 USB ports PS/2 keyboard and mouse ports PC Health Monitoring Monitoring the voltages of the CPU core and the status of system power supply (+3.3V, + 5V, + 12V) CPU/chassis temperature monitoring CPU fan auto-off in sleep mode CPU overheat LED header LED and control for chassis intrusion detection System resource alert Support for system management software Special Feature Suspend to RAM (STR): All tasks are stored in RAM and can be resumed within 10 seconds from the minimum power consuming suspend mode. Wake-on-LAN allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing a network. Onboard 3-phase switching power regulator supports CPU core voltages from 1.1-1.85 volts 4 tachometer fan connectors (for CPU, chassis, and thermal control fans) Keyboard wake-up from Soft-off CPU frequency settings - changeable in BIOS setup Connector for LED overheat indicator Overheat backup fan connector for CPU protection BIOS Feature Supports ACPI (Advanced Configuration and Power Interface) and APM (Advanced Power Management) Slow blinking LED for Sleep State indicator Main switch override mechanism. Power-up mode control upon recovery from AC power loss PC Health Monitoring protects your system from problems even before they occur. DMI support ACPI/APM power management RTC (Real-Time Clock) wakeup External modem remote ring-on when system is in Soft-Off state BIOS rescue hot keys for rescuing BIOS chip from flash failure Hardware BIOS virus protection 4Mb Flash ROM Other Feature ACPI/APM power management Internal/external modem ring-on Control of power-on mode for recovery from AC power loss One WOL (Wake-On-LAN) connector One chassis intrusion connector Chassis Compatibility Extended ATX Chassis SC760P4 (400W) To ensure system stability, a 400W (minimum) ATX12V power supply (with both 4-pin and 8-pin +12v power connector) is required. Please check Support for more details Standard Retail Package One SUPER P4DC6+ mainboard CPU heatsink retention and clips 1 three-ended 80-wire/40-pin IDE UDMA/100 ribbon cable for high speed UDMA IDE devices 1 floppy ribbon cable 2 Fan-041 with heatsink Two TMR-007 One BIOS/drivers CD CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
