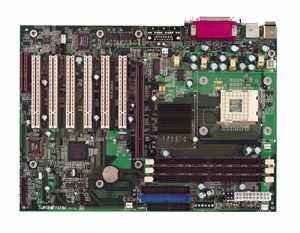

SUPER P4SBA - Supermicro
Target Segment High-end desktop, workstation, and internet application Form Factor ATX with PC99 color-coded double-deck I/O Size: 12" x 8.7" (W x H) Processor Support Intel 478-pin Pentium 4 (Willamette/Northwood) FC-PGA2, 1.3-2.0GHz+ Chipset Intel 845 chipset Front Side Bus 400 MHz Memory Up to 3GB of unbuffered ECC/ non-ECC SDRAM DIMMS I/O Expansion 6 32-bit, 33 MHz PCI bus mastering slots 1 4xAGP Pro 1.5V 1 CNR Onboard Devices Dual Ultra DMA (UDMA/100MB/s) Burst data transfer rate supports UDMA Mode 5, PIO Mode 4, ATAPI AC97' Audio (OEM optional) Up to 4 USB (Universal Serial Bus) ports (2 onboard and another 2 by optional cable and CNR card) PS/2 keyboard and PS/2 mouse connectors 2 fast UART 16550 compatible serial ports 1 ECP/EPP parallel port 1 Infrared port 1 floppy port Chassis Compatibility ATX Chassis SC760P4, SC750P4 (350W) To ensure system stability, a 300W (minimum) ATX12V power supply (with a 4 pin +12v power connector) is required. PC Health Monitoring Monitoring the voltages of the CPU core and the status of system power supply (+3.3V, + 5V, + 12V) CPU/chassis temperature monitoring CPU fan auto-off in sleep mode CPU overheat LED header LED and control for chassis intrusion detection System resource alert Support for system management software Special Feature Suspend to RAM (STR): All tasks are stored in RAM and can be resumed within 10 seconds from the minimum power consuming suspend mode. Wake-on-LAN allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing a network. Onboard 3-phase switching power regulator supports CPU core voltages from 1.1-1.85 volts 4 tachometer fan connectors (for CPU, chassis, and thermal control fans) Keyboard wake-up from Soft-off CPU frequency settings - changeable in BIOS setup Connector for LED overheat indicator Overheat backup fan connector for CPU protection BIOS Feature Supports ACPI (Advanced Configuration and Power Interface) and APM (Advanced Power Management) Slow blinking LED for Sleep State indicator Main switch override mechanism. Power-up mode control upon recovery from AC power loss PC Health Monitoring protects your system from problems even before they occur. DMI support ACPI/APM power management RTC (Real-Time Clock) wakeup External modem remote ring-on when system is in Soft-Off state BIOS rescue hot keys for rescuing BIOS chip from flash failure Hardware BIOS virus protection 4Mb Flash ROM Other Feature ACPI/APM power management Internal/external modem ring-on Control of power-on mode for recovery from AC power loss One WOL (Wake-On-LAN) connector One chassis intrusion connector Standard Retail Package One SUPER P4SBA mainboard CPU heatsink retention and clips One three-ended 80-wire/40-pin IDE UDMA/100 ribbon cable for high speed UDMA IDE devices One floppy ribbon cable One BIOS/drivers CD CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
