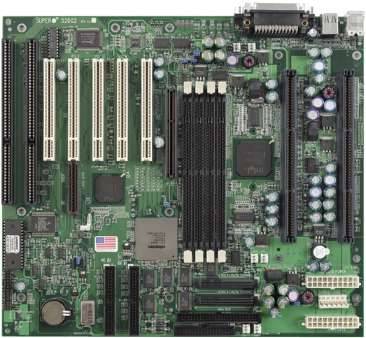

SUPER S2DG2 - Supermicro
The SUPER S2DG2 running at bus speed of 100 MHz, supports dual Pentium III/II Xeon 400 - 700 MHz processors. The S2DG2 is based on Intel's 440GX AGPset, which enables AGP, 100 MHz SDRAM, concurrent PCI, Ultra DMA with a 33 MB/s burst data transfer rate, an onboard Adaptec AIC-7896 Dual Channel Ultra II SCSI controller with transfer rates of up to 80 MB/s per channel, Adaptec SCSI RAIDPortIII support and Wake-on-LAN. The SUPER S2DG2 comes with 5 PCI and 2 ISA slots and an AGP connector (includes one PCI/ISA shared slot). AGP reduces contention between the CPU and I/O devices by broadening the bandwidth of graphics to memory. It delivers a maximum 532 MB/s 2X-transfer mode, which is quadruple the PCI speed. AGP offers a quantum-leap improvement in 3D graphics performance with far richer texture content! Wake-on-LAN allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing the network. PC Health Monitoring Seven onboard voltage monitors for CPU core/s, CPU I/O, +3.3V, ± 5V, and ± 12V Three-fan status monitor with firmware/software on/off control CPU/chassis temperature control CPU fan auto-off in sleep mode CPU overheat alarm, LED and control Chassis intrusion detection System resource alert -Supports SUPER Doctor and Intel's LANDesk® Client Manager Hardware BIOS virus protection Auto-switching voltage regulator for CPU core, up to 20A of current ACPI/PC 98 Features Microsoft OnNow Slow blinking LED for sleep-state indicator BIOS boot support for USB keyboard Real-time clock wake-up alarm Main switch override mechanism Remote modem ring-on when system is in SoftOff state Other features that maximize customer satisfaction and simplicity in managing the computer are PC 98-ready and support for Advanced Configuration and Power Interface (ACPI). With PC Health Monitoring, you can protect your system from problems even before they occur. The SUPER S2DG2 is an ATX (12" x 10.65") form factor board that can accommodate a total of 2 GB registered and unbuffered SDRAM memory at 100 MHz in 4 168-pin DIMM sockets. Included I/O: 2 EIDE ports, a floppy port, an ECP/EPP parallel port, PS/2 mouse and PS/2 keyboard, 2 serial ports, an infrared port and 2 USB ports. The SUPER S2DG2 provides an onboard Adaptec 7896 Dual Ultra II SCSI controller for a data transfer rate of up to 80 MB/s per channel. The incorporated multi-channel Ultra SCSI chip lowers the total cost of ownership in a high-end, high-performance server environment. In addition, support of Adaptec's ARO 1130-CA2 RAIDPort III increases I/O performance and fault tolerance for extended functionality. SUPER S2DG2 images: 1. Small: (25 KB) 2. Large: (276 KB) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
