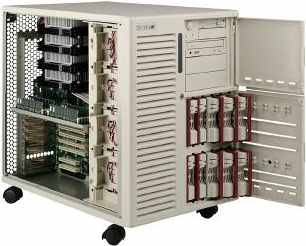

SuperServer 8050 - Supermicro
Motherboard SUPER S2QR6 CPU Quad, Dual or Single Intel Pentium III/II Slot 2 Xeon processors up to 900MHz Memory Up to 16GB ECC registered PC100 SDRAM memory Four-way interleaved memory banks for outstanding memory performance MEC (Memory Expansion Card) included Front Side BUS 100MHz Chipset ServerWorks ServerSet III HE I/O Expansion 2 64-bit, 66MHz PCI 4 64/32-bit, 33MHz PCI 2 32-bit, 33MHz PCI Supports PCI PME wakeup Onboard I/O Devices Adaptec AIC-7899 dual channel Ultra 160 SCSI controller Intel 82559 Ethernet controller ATI Rage XL 8MB PCI graphic controller Dual Ultra DMA (UDMA/33) bus master/EIDE channels support data transfer rates of up to 33 MB/sec 2 Fast UART 16550A compatible serial ports 2 USB ports PS/2 keyboard and mouse ports BIOS 4MB AMI Flash ROM BIOS rescue recovery feature Hardware BIOS virus protection ACPI/APM power management PnP PXE headless support Dimensions Width: 14.9 in. Height: 19.9 in. Depth: 22.8 in. Weight: 112 lb. Chassis SC850 Form Factor Tower Power Supply Triple redundant hot-plug power supply 700W continuous power for normal operations plus 350W backup Auto-switching 100/225 AC power Power levels are continuously monitored Power failure indicated by LED and sound Eliminates system downtime SCA Subsystem 10 Hot-plug Ultra160 SCA 3.5" SCSI drive bays (for one-inch high, 80-pin SCA SCSI drives) One SAF-TE compliant SCA backplane with QLogic GEM354 Enclosure Management Controller SCA backplane provides power, bus termination RAID Level 5 configuration ensures backup for SCSI drive failures (O.S. Software RAID) SCA backplane overheat LEDs and alarm Failure Drive LED, Active LED Cooling Subsystem Four sets of redundant, hot-swap system cooling fans (intake) with LED and audible alarm to indicate fan failure Two 12-cm drive bay cooling fans (exhaust) Tachometer reading and automatic overheat speed-up control External Drive Bays 2 3.5" drive bay 3 5.25" drive bay PC Health Monitoring 4 Onboard voltage monitors for CPU 4 Fan status Environmental temperature monitor and control Chassis and CPU overheat alarm, LED indication and control System resource alert Other Features Auto-switching voltage regulator modules (VRMs) for different CPU core voltages Onboard AOL2 (Alert-On-LAN 2) controller chip LED indicators for power on, network activity, IDE HDD activity, power supply failure, fan failure, overheat warning and SCSI drive failure Four lockable wheels Fully detachable side panels Pre-bundled control panel communication wires Alarm reset switch Power ON/OFF and system reset switches PC'99 color-coded I/O connectors Chassis intrusion detection CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERMICRO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
