CMB-01 - TCommate

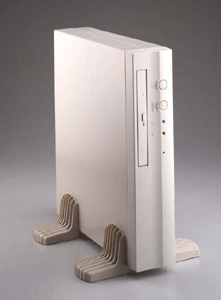

-------------------------------------------------------------------------------- Value Embedded VIA Eden/ C3 Solution Embeded VIa Eden/ C3 Mini-PC Platform Eden 400/ 533/ 667 and C3 800/ 933 MHz CPU with VIA/ Trident 3D VGA 8 MB Video Memory LAN, Audio, AV/ S-Video, TV- out Interface CD-ROM and Optional Flash Card Reader Dual USB Ports on the Front Panel ˇ@ view larger image . Overview COMMELL's CMB-01 is an all-in-one book-size Mini-server / terminal platform based on Intel socket 370 architecture, supports Intel Tualatin / Coppermine Pentium-III, Celeron and VIA C3 CPU at 66/100/133 MHz of FSB. With 1GB PC133 SDRAM, UltraATA/100 IDE,< Industrial Embedded Applied Mini-Server, Transaction Station, POS/POI, KIOSK, ATM, Web Payphone and Terminal Platform 3D Video Game Machine, STB (Set-Top-Box), Multi-Media Station and Terminal, Book-size PC, Thin Client, Internet Computer, WebPAD, Industrial Panel PC, Portable Workstation, Panel-mount / Wall-mount / Ceil-mount Workstation Industrial Applied Instruments Based on 1394, Network and Multi-media Functions Back ToTop Key Feature Powerful computing capacity with Intel Socket 370 Pentium-III / Celeron and VIA C3 CPU at 133/100/66 MHz of FSB, Intel Tualatin and Coppermine CPU supported High memory capacity up to 1 GB PC133 SDRAM Powerful integrated on-die 4xAGP 3D/2D SVGA interface with 32MB video memory Advanced UltraATA/100 IDE interface to enhance the full system performance Integrated Lucent 1394 interface supports 100/200/400 Mbps of data transfer rate Integrated 10/100 Mbps Fast Ethernet interface Integrated AC'97 3D Audio interface Integrated two USB ports for additional USB devices or adapters Popular OS supported for industrial and commercial mainstream applications Book-size with 295 x 63 x 270 mm (W x H x D) of dimension Back ToTop Specification Form Factor Book-size mini-PC/ mini-ITX barebone Motherboard COMMELL LV-660 embedded VIA Ede/ C3 Mini-ITX motherboard CPU VIA embeded Eden 533 MHz and C3 800MHz CPU Optional VIA Eden 400/ 667 MHz and C3 933 MHz CPU for OEM project Memory 1 GB PC100/133 SDRAM on 2 x 168-pin DIMM sockets Solid State Disk IDE-based DOM (DiskOnModule) flash disk with 8 to 512 MB of flash memory capacity PIO mode 4 with 16.6 MByes of data transfer rate PCI Enhanced IDE Dual UltraATA/100 bus master IDE channels on two 40-pin IDE ports VGA Interface VIA PLE133 VT8601A chipset built-in Trident Blade3D VGA with 8 MB of video memory shared with system memory TV-out Interface AV BNC and S-video TV-out connector on back I/O panel LAN Interface 10/100BASE-Tx Fast Ethernet LAN interface Audio Interface AC97 3D audio codec with line-in, line-out, mic-in and CD-in interface Multi-I/O Port 1 x RS-232 serial port, 1 x SPP/EPP/ECP parallel port, 2 x USB ports, IrDA port, PS/2 keyboard and mouse port Drive Bay External one slim type CD-ROM or CD-RW Internal one 3.5ˇ¨ hard disk drive bay Front Panel Power / access / LAN LED and power / reset switch button Dual USB ports on the front side Back I/O Panel PS/2 Keyboard and mouse port, Parallel port, VGA port, AV / S-video TV-out, LAN, dual USB ports, COM port, line-in, line-out, mic-in audio ports Power Supply 90 watt ATX AC/DC power supply with selectable 115/230V power input Download Datasheet @ PDF format Back ToTop Ordering Guide CMB-01 CMB-01-xxx-xxx xxx : following the model of LV-602, LV-603, LV-660 model-no of the last 1~3 digites LV-602 : compliant with this case/power the model will be ˇ§CMB-01-602-ˇ¨ LV-603 : compliant with this case/power the model will be ˇ§CMB-01-603-ˇ¨ LV-660 : compliant with this case/power the model will be ˇ§CMB-01-660-ˇ¨ xxx : following the model of LV-602, LV-603, LV-660 ordering code the last 1~3 digites LV-602C : compliant with this case/power the model will be ˇ§CMB-01-602-Cˇ¨ LV-603B/T : compliant with this case/power the model will be ˇ§CMB-01-603-B/Tˇ¨ LV-660E : compliant with this case/power the model will be ˇ§CMB-01-660-Eˇ¨ CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TCommate Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
