CMB-03 - TCommate

CMB-03 Industrial Pentium 4 Barebone with 533/400 MHz FSB,
DDR200/266/333 SDRAM, Intel Extreme Graphics,
TV-out, S Video Interface, IEEE 1394, 10/100 Mbps LAN,
5-1 Channel 3D Audio/SPDIF, USB 2.0

ˇ@

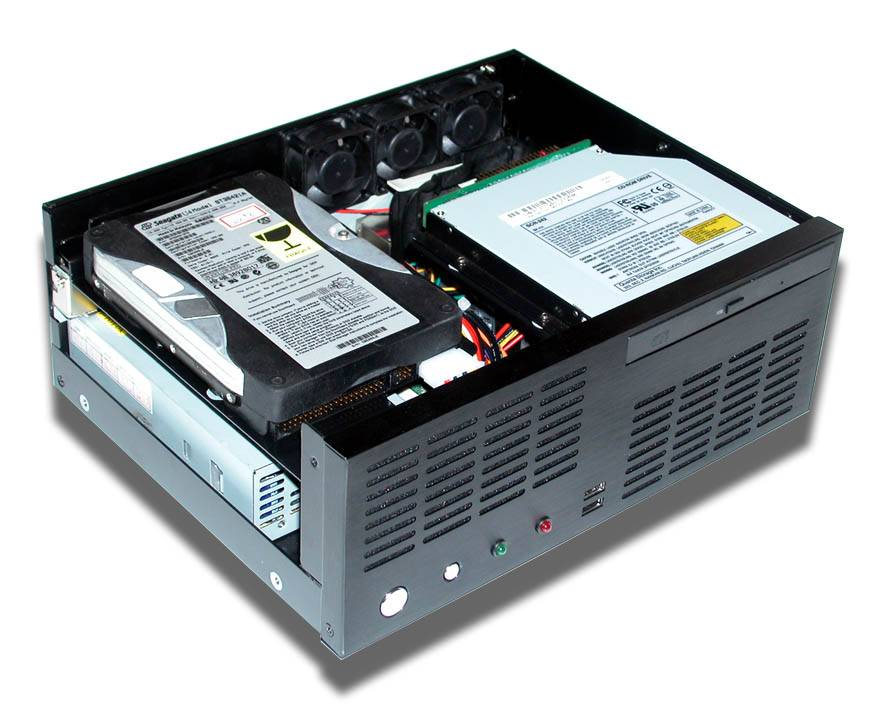

view larger image
.
Overview
COMMELL the Industrial Computer Division of Taiwan Commate Computer Inc., announce the Book-size Socket 478 Pentium 4 / Celeron Level Mini-server Barebone CMB-03 based on a SEEC metal and aluminum-alloy housing at 225 x 102 x 280mm dimension with 200W AC-
Compact Mini-ITX Form Factor @ 170 x 170 mm

COMMELL CMB-03 is based on the ultra compact mini-ITX form factor with only 170 x 170 mm of dimension, meets the demand of compact and powerful computing platform. That is, COMMELL CMB-03 is the ideal solution for the embedded PC systems feature both of t
Powerful Computing Platform
With Intel Socket 478 Pentium 4 / Celeron CPU at 533/400 MHz FSB and 1 GB DDR200/266/333 SDRAM of system memory, COMMELL LV-670 Serials offers the high-end industrial computing platform with low cost Intel integrated solution.

Value / High Performance Multi-media Solution

Value / High Performance Multi-media Solution: Intel 845G series chipset built-in Intel Extreme Graphics and AC97 3D audio with SPDIF make COMMELL LV-670 be the high performance but low cost multi-media AV platform. With this feature, COMMELL LV-670 Serie plications.

Hi-Speed USB 2.0 and IEEE 1394 Interface

COMMELL LV-670M offers both of Hi-Speed USB 2.0 interface with Intel ICH4 chipset and IEEE 1394 interface with onboard Agere FW323 chipset. The Hi-Speed USB 2.0 interface offers up to 480 Mbps and IEEE 1394 interface offers 100/200/400 Mbps of data transf
Hi-Speed USB 2.0 and IEEE 1394 Interface

Hi-Speed USB 2.0 and IEEE 1394 Interface: Intel ICH4 built-in Hi-Speed USB 2.0 controller and onboard IEEE 1394 chipset let COMMELL LV-670 Serials offer up to 480 Mbps of Hi-Speed USB 2.0 and 100/200/400 Mbps of IEEE 1394 interfaces.


Back ToTop
Feature
Value / High Performance Multimedia Solution
The advanced multimedia performance of COMMELL CMB-03 comes from the onboard Intel 845GV chipset built-in Intel Extreme Graphics with 266 MHz VGA core, full duplex AC97 2.2 compatible stereo audio with SPDIF, AV/S-video TV-out interfaces supporting up to<
Hi-Speed USB 2.0 and IEEE 1394 Interface
COMMELL CMB-03 offers both of Hi-Speed USB 2.0 interface with Intel ICH4 chipset and IEEE 1394 interface with onboard Agere FW323 chipset. The Hi-Speed USB 2.0 interface offers up to 480 Mbps and IEEE 1394 interface offers 100/200/400 Mbps of data transfe




Back ToTop
Specifications
Chasis :
Dimension(W*H*D): 225x102x280mm
Weight: Net 3.0kgs
Disk Drive Bay: 5.25 Drives: 1xSlim CD-ROM,
3.5 Drives: 1x3.5"HDD or 1x2.5"HDD
Cooling Fan
Front Fan No: (5x5x2)cm*2Fans
CFM: 6.96 CFM(CMM0.20)
Rear Fan No: (4*4*2)cm*3Fans
CFM: 9.30CFM(CMM0.26)
Air Filter: Replaceable
Versatilities
Controls on Front Panel: Power on/off, RESET button
Indicator on Front Panel: Power on,HDD activity
Extension Port: 2*USB ports on front panel
Environmental
Operating Temp: 0~45?
Altitude: 3000m(10.000ft)
Shock: 2.5G@ 15~20ms(35G@15~20ms non-operating)
Vibration displacement: 17~500HZ,(operating and non-operating)5~17HZ,0.1”double amplitude
Humidity: 10 to 95%.@25?.non-condensing
Power Supply options 200w ATX Power Supply

Motherboard support : Mini-ITX LV-670 serieals
Form Factor Mini-ITX form factor at 170 x 170 mm
CPU Micro-FCPGA Mobile Intel Pentium 4 / Celeron CPU
up to 2.5 GHz @ 400 MHz FSB
On-die 512KBytes Full-Speed Level 2 (L2) cache
Support Intel NetBurst Microarchitecture
Memory One 184-pin DIMM socket
Support up to 1 GBytes DDR266/333 SDRAM
Chipset Intel 845GV chipset with 82845GV GMCH and 82801DB ICH4
Watchdog Timer Programmable generates NMI or system reset watchdog timer
with 1 to 255 sec. / min. of time out value
Power Management ACPI 1.0 compliant, supports power saving mode with ATX PSU
Real Time Clock Intel ICH4 built-in RTC with onboard lithium battery
PCI Enhanced IDE Dual UltraATA/100 bus master IDE channels
Support up to 4 ATAPI devices on 40-/44-pin IDE ports
Jumper selectable Vcc power output on 40-pin IDE1
for power cable free DiskOnModule flash disk
VGA Interface Intel 845GV GMCH built-in Intel Extreme Graphics
with 266 MHz VGA core and 256-bit 3D engine
Intel Dynamic Video Memory up to 64 MB shared with system
External DB15 female connector on rear I/O panel
LVDS Interface Intel 845GV GMCH built-in Intel Extreme Graphics
with onboard Chrontel CH7017A built-in LVDS transmitter
Resolution up to 1600 x 1200 @ 16M colors
Support 24-bit Dual channel LVDS TFT LCD
Onboard 40-pin Hirose connector
TV-out Interface Intel 845GV GMCH built-in Intel Extreme Graphics
with onboard Chrontel CH7017A built-in TV-out encoder
External AV RCA and S-Video connector rear I/O panel
LAN Interface Intel ICH4 with onboard Intel 82562ET Phy
Intel PRO/100+ 10/100 Mbps Fast Ethernet interface
10/100Base-TX auto-switching, IEEE802.3U compliant
Audio Interface Intel ICH4 with onboard ACL650 AC97 3D audio codec
5.1 channel, line-in, line-out, Mic-in, CD-in and S/P DIF interface
IEEE1394 PCI Agere FW323 IEEE1394 controller
with 100/200/400 Mbps of data transfer rate
Hi-Speed USB 2.0 Intel ICH4 chipset built-in Hi-Speed USB 2.0 interface
with 480 Mbps of data transfer rate and bootable setting in BIOS
Multi-I/O Port Intel ICH4 and LPC Winbond W83627HF-AW super-I/O controller
1 x RS-232 serial ports, 1 x SPP/EPP/ECP parallel port
4 x Hi-Speed USB 2.0 ports with 480 Mbps of data transfer rate
IrDA port, Floppy port, PS/2 keyboard / mouse port
External I/O Port PS/2 keyboard / mouse port
AV RCA and S-Video TV-out, VGA, Parallel Port
Dual Hi-Speed USB 2.0, LAN
IEEE1394, 5.1-CH and S/P DIF Audio
Solid State Disk
(DiskOnModule) DiskOnModule IDE-based, bootable, driver free flash disk
Flash memory capacity up to 512 MBytes
Expansive Slot One 32-bit PCI slot supports 2 bus master PCI via riser card
Environment Power Requirement: Standard P4 ATX power input
Board Dimension: 170 x 170 mm (L x W)
Operation Temperature: 0 ~ 60oC (32 ~ 140oF)
