LV-660 - TCommate

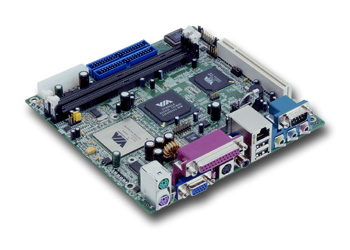

-------------------------------------------------------------------------------- Embedded VIA Eden Mini-ITX Motherboard Embedded VIA Eden 533 MHz CPU VIA/Trident Blade3D SVGA with 8MB VRAM Onboard 10/100 Mbps LAN, AC97 3D Audio Onboard AV/S-Video TV-out Interface IDE-based DiskOnModule SSD Interface Compact Size @ 170 x 170 mm (L x W) view larger image . Overview COMMELL's LV-660 SBC (Single Board Computer) is an all-in-one industrial standard Mini-ITX motherboard based on VIA Eden platform, supports VIA Eden/C3 CPU for low power, fan free embedded application. With 1GB PC133 SDRAM, UltraATA/100 IDE, integrated Tr Industrial Embedded Applied Mini-Server, Transaction Station, POS/POI, Kiosk, ATM, Web Payphone and Terminal Platform 3D Video Game Machine, STB (Set-Top-Box), Multimedia Station and Terminal, Book-size PC, Thin Client, Internet Computer, WebPAD, Industrial Panel PC, Portable Workstation, Panel-mount / Wall-mount / Ceil-mount Workstation Industrial Applied Instruments Based on 1394, Network and Multi-media Functions Back ToTop Key Feature Low power, fan free VIA Eden platform Compact size at 170 x 170 mm of dimension, Mini-ITX form factor compliant High memory capacity up to 1 GB PC133 SDRAM Chipset built-in Trident Blade3D SVGA controller with 8MB shared video memory Advanced UltraATA/100 IDE interface to enhance the system performance Onboard 10/100 Mbps Fast Ethernet interface Onboard AC'97 3D Audio interface Onboard AV / S-Video TV-out interface Popular OS supported for industrial and commercial mainstream applications Industrial standard Mini Flex ATX form factor with 6.7 x 6.7 inches of dimension Back ToTop Specification Form Factor Mini-ITX with 6.7 x 6.7 inches (17 x 17 cm) of dimension CPU Onboard embedded fan free VIA Eden 533 MHz CPU. Optional fan free Eden 400/800 MHz CPU for fan free application and C3 800/933 MHz CPU with onboard cooling fan for high computing capacity Memory 1 GB PC100/133 SDRAM PCI Enhanced IDE dual Channels support 4 ATAPI devices up to UltraATA/100 with 100Mbps of data transfer rate I/O Ports 1 x RS232C serial port, parallel port, 4 USB, IrDA, PS/2 keyboard and mouse ports Multi-media Interface Chipset built-in Trident Blade3D SVGA with 8MB shared video memory and AC97 3D audio interfaces, optional AV and S-Video TV-out interface LAN Interface 10/100 Mbps Fast Ethernet interface Expansive Slot one PCI bus interface Download Datasheet @ PDF format Back ToTop Ordering Guide LV-660E Mini-ITX Embedded VIA Eden Motherboard with VIA Eden 533 MHz CPU VGA, Audio, LAN, TV-out Interface LV660C Mini-ITX Embedded VIA Eden Motherboard with VIA C3 800 MHz CPU VGA, Audio, LAN, TV-out Interface LV660C1 Mini-ITX Embedded VIA Eden Motherboard with VIA C3 1GMHz CPU VGA, Audio, LAN, TV-out Interface CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TCommate Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
