LV-670 - TCommate

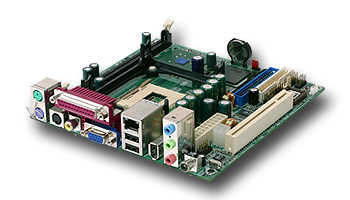

Pentium 4 Ultra Compact Motherboard Mini-ITX Socket 478 Pentium 4 DDR Motherboard with 533/400 MHz FSB Intel Extreme SVGA Intel PRO/100+ LAN Hi-Speed USB 2.0, IEEE1394 5.1-CH/SPDIF Audio and TV-out Interfaces ˇ@ view larger image . Overview COMMELL LV-670 is an all-in-one industrial compact Pentium 4 level motherboard based on Mini-ITX form factor at 170 x 170 mm of dimension. Based on Intel 845G (GV/GE)/ICH4 chipset, LV-670 offers the compact, embedded, value and high performance solution w Compact Mini-ITX Form Factor @ 170 x 170 mm COMMELL LV-670 is based on the ultra compact Mini-ITX form factor with only 170 x 170 mm of dimension, meets the demand of compact and powerful computing platform. That is, COMMELL LV-670 is the ideal solution for the embedded PC systems feature both of t Powerful Computing Platform With Intel Socket 478 Pentium 4/Celeron CPU at 533/400 MHz FSB and 1 GB DDR200/266 (DDR266/333 for LV-670GE) SDRAM of system memory, COMMELL LV-670 offers the high-end industrial computing platform with low cost Intel integrated solution. Value / High Performance Multi-media Solution Intel 845G series chipset built-in Intel Extreme Graphics and AC97 3D audio with SPDIF make COMMELL LV-670 be the high performance but low cost multi-media AV platform. With this feature, COMMELL LV-670 should be the ideal solution for VoD (video on deman Hi-Speed USB 2.0 and IEEE 1394 Interface Intel ICH4 built-in Hi-Speed USB 2.0 controller and onboard IEEE 1394 chipset let COMMELL LV-670 offer up to 480 Mbps of Hi-Speed USB 2.0 and 100/200/400 Mbps of IEEE 1394 interfaces. Back ToTop Key Feature Ultra compact motherboard with 170 x 170 mm (W x L), Mini-ITX form factor Powerful computing capacity with Intel Pentium 4 / Celeron CPU at 533/400 MHz FSB High memory capacity with 1 GB DDR200/266 SDRAM (DDR266/333 for LV-670GE) High reliability / compatibility and long term supply Intel 82845G (GL/GV/GE) solution Integrated Intel PRO/100+ 10/100 Mbps Fast Ethernet interface Intel 82845G (GV/GE) GMCH built-in Intel Extreme Graphics with 266 MHz VGA core, 256-bit 3D engine and dynamic video memory Intel 82801DB ICH4 built-in Hi-Speed USB 2.0 with up to 480 Mbps of data transfer rate Integrated IEEE 1394 interface with 100/200/400 Mbps of data transfer rate One 40-pin and one 44-pin IDE port for both of desktop and slim type ATAPI devices Integrated AC97 3D 5.1-CH / SPDIF audio, TV-out interface SSD (Solid State Disk) interface with DiskOnModule flash disk Pentium 4 additional +12V power free for standard ATX power supply Back ToTop Specification Form Factor Mini-ITX form factor at 170 x 170 mm CPU Socket 478 supports Intel mPGA478 Pentium 4 / Celeron CPU @ 533/400 MHz FSB Chipset Intel 845G series (GV/GE) GMCH and 82801DB ICH4 Memory 1 GB DDR200/266 SDRAM (LV-670) or DDR266/333 SDRAM (LV-670GE) PCI Enhanced IDE Dual Channels support 4 ATAPI devices up to UltraATA/100 with 100Mbps of data transfer rate. One 40-pin and one 44-pin IDE port for both of desktop and slim type ATAPI devices. VGA Interface Intel 845G (GV/GE) GMCH built-in Intel Extreme Graphics with 266 MHz VGA core, 256-bit 3D engine and dynamic video memory with TV-out interface with AV and S-video output LAN Interface Intel PRO/100+ 10/100 Mbps Fast Ethernet interface IEEE1394 PCI Agere FW323 IEEE1394 controller with 100/200/400 Mbps of data transfer rate Hi-Speed USB 2.0 Intel ICH4 chipset built-in Hi-Speed USB 2.0 interface with 480 Mbps of data transfer rate and bootable setting in BIOS I/O Port Two serial port, parallel port, FDD, IrDA, PS/2 keyboard and mouse port Solid State Disk (DiskOnModule) DiskOnModule IDE-based, bootable, driver free flash disk Flash memory capacity up to 512 MBytes Expansive Slot One 32-bit PCI slot supports 2 bus master PCI via riser card Environment Power Requirement: Standard P4 ATX power input Board Dimension: 170 x 170 mm (L x W) Operation Temperature: 0 ~ 60oC (32 ~ 140oF) Download Datasheet @ PDF format Back ToTop Ordering Guide LV-670 Mini-ITX Socket 478 Pentium 4 DDR Motherboard With Intel 845GV/ICH4 Chipset, 533/400 MHz FSB, DDR200/266 SDRAM Intel Built-in Extreme 3D VGA, Intel PRO/100+ LAN, Hi-Speed USB 2.0 IEEE 1394, 5.1-CH/SPDIF Audio, and TV-out Interfaces SPD-120-19 AC-DC Adapter with 19V, 120W DC Jack Output SPD-150-19A AC-DC Adapter with 19V, 150W Mini DIN Output DC/ DC IN DC/ DC Power Module for LV-670 Series CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TCommate Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
