LV-670LVDS - TCommate

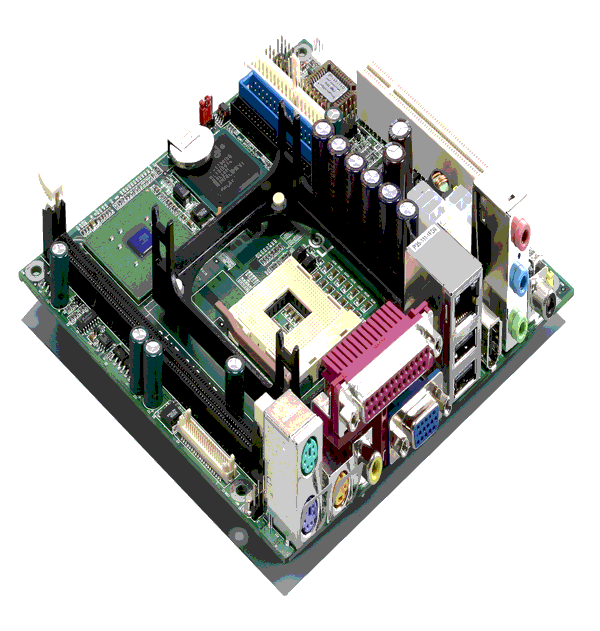

Pentium 4 Ultra Compact Motherboard for LVDS Solution Mini-ITX Socket 478 Pentium 4 DDR Motherboard with 533/400 MHz FSB, Intel Extreme SVGA 18-/24-bit Dual channel LVDS Interface Intel PRO/100+ LAN,Hi-Speed USB 2.0, IEEE1394 5.1-CH/SPDIF Audio and TV-out Interfaces ˇ@ view larger image . Overview COMMELL LV-670LVDS is an all-in-one industrial compact Pentium 4 level motherboard based on Mini-ITX form factor at 170 x 170 mm of dimension. Based on Intel 845GE ICH4 chipset, LV-670LVDS offers the compact, embedded, value and high performance solution< Compact Mini-ITX Form Factor @ 170 x 170 mm: COMMELL LV-670LVDS is based on the ultra compact Mini-ITX form factor with only 170 x 170 mm of dimension, meets the demand of compact and powerful computing platform. That is, COMMELL LV-670LVDS is the ideal s Powerful Computing Platform: With Intel Socket 478 Pentium 4/ Celeron CPU at 533/ 400 MHz FSB and 1 GB DDR266/ 333 SDRAM of system memory, COMMELL LV-670LVDS offers the high-end industrial computing platform with low cost Intel integrated solution. Value / High Performance Multi-media Solution: Intel 845GV chipset built-in Intel Extreme Graphics and AC97 3D audio with SPDIF make COMMELL LV-670LVDS be the high performance but low cost multi-media AV platform. With this feature, COMMELL LV-670LVDS sho ons. Hi-Speed USB 2.0 and IEEE 1394 Interface: Intel ICH4 built-in Hi-Speed USB 2.0 controller and onboard IEEE 1394 chipset let COMMELL LV-670LVDS offer up to 480 Mbps of Hi-Speed USB 2.0 and 100/ 200/ 400 Mbps of IEEE 1394 interfaces. Back ToTop Key Feature Ultra compact motherboard with 170 x 170 mm (W x L), Mini-ITX form factor Powerful computing capacity with Intel Pentium 4/ Celeron CPU at 533/400 MHz FSB High memory capacity with 1 GB DDR266/ 333 SDRAM High reliability/ compatibility and long term supply Intel 82845V solution Integrated Intel PRO/ 100+ 10/100 Mbps Fast Ethernet interface Intel 82845GV GMCH built-in Intel Extreme Graphics with 266 MHz VGA core, 256-bit 3D engine and dynamic video memory Intel 82801DB ICH4 built-in Hi-Speed USB 2.0 with up to 480 Mbps of data transfer rate Integrated IEEE 1394 interface with 100/ 200/ 400 Mbps of data transfer rate One 40-pin and one 44-pin IDE port for both of desktop and slim type ATAPI devices Integrated AC97 3D 5.1-CH / SPDIF audio, TV-out interface SSD (Solid State Disk) interface with DiskOnModule flash disk Pentium 4 additional +12V power free for standard ATX power supply Back ToTop Specification Form Factor Mini-ITX with 6.7 x 6.7 inches (17 x 17 cm) of dimension CPU Socket 478 supports Intel mPGA478 Pentium 4 / Celeron CPU @ 533/400 MHz FSB Chipset Intel 845GV GMCH and 82801DB ICH4 Memory 1 GB DDR266/333 SDRAM PCI Enhanced IDE Dual Channels support 4 ATAPI devices up to UltraATA/ 100 with 100Mbps of data transfer rate. One 40-pin and one 44-pin IDE port for both of desktop and slim type ATAPI devices. VGA Interface Intel 845GV GMCH built-in Intel Extreme Graphics with 266 MHz VGA core, 256-bit 3D engine and dynamic video memory TV-out interface with AV and S-video output LAN Interface Intel PRO/100+ 10/100 Mbps Fast Ethernet interface Multi-I/O port Two serial port, parallel port, FDD, IrDA, PS/2 keyboard and mouse port Hi-speed USB 2.0 interface with up to 480 Mbpsof data transfer rate. IEEE 1394 interface with 100/200/400 Mbps of data transfer rate Audio Interface AC97 3D 5.1-CH / SPDIF audio interface Expansive Interface one PCI slot up to 2 bus master PCI expansive slots via riser card SSD IDE-based DiskOnModule with up to 256 MBytes of flash memory capacity Download Datasheet @ PDF format Back ToTop Ordering Guide LV-670LVDS Mini-ITX Socket 478 Pentium 4 DDR333 Motherboard With Intel 845GV/ICH4 Chipset, 533/400 MHz FSB, DDR333/ 266 SDRAM Intel Built-in Extreme 3D VGA, Intel PRO/100+ LAN, Hi-Speed USB 2.0 IEEE 1394, 5.1-CH/ SPDIF Audio, and TV-out Interfaces SPD-120-19 AC-DC Adapter with 19V, 120W DC Jack Output SPD-150-19A AC-DC Adapter with 19V, 150W Mini DIN Output DC/ DC IN DC/ DC Power Module for LV-670 Series CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TCommate Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
