LV-670M - TCommate



--------------------------------------------------------------------------------

Mini-ITX Mobile Intel Pentium M Embedded Motherboard

Mobile Intel Pentium M , Intel Micro-FCPGA Package,

400 MHz FSB, 1 GBytes DDR266/333 SDRAM

Intel NetBurst Microarchitecture 845GV GMCH Built-in Extreme Graphics

Intel Dynamic Video Memory up to 64MB, 24-bit Dual Channel LVDS Interface

Onboard Intel PRO/100+ LAN, 5.1 Channel & S/P DIF AC97 3D Audio

Onboard PCI IEEE 1394 Interface, Hi-Speed USB 2.0 with 480 Mbps

IDE-based DiskOnModule SSD Interface, AV/S-Video TV-out Interface

ˇ@

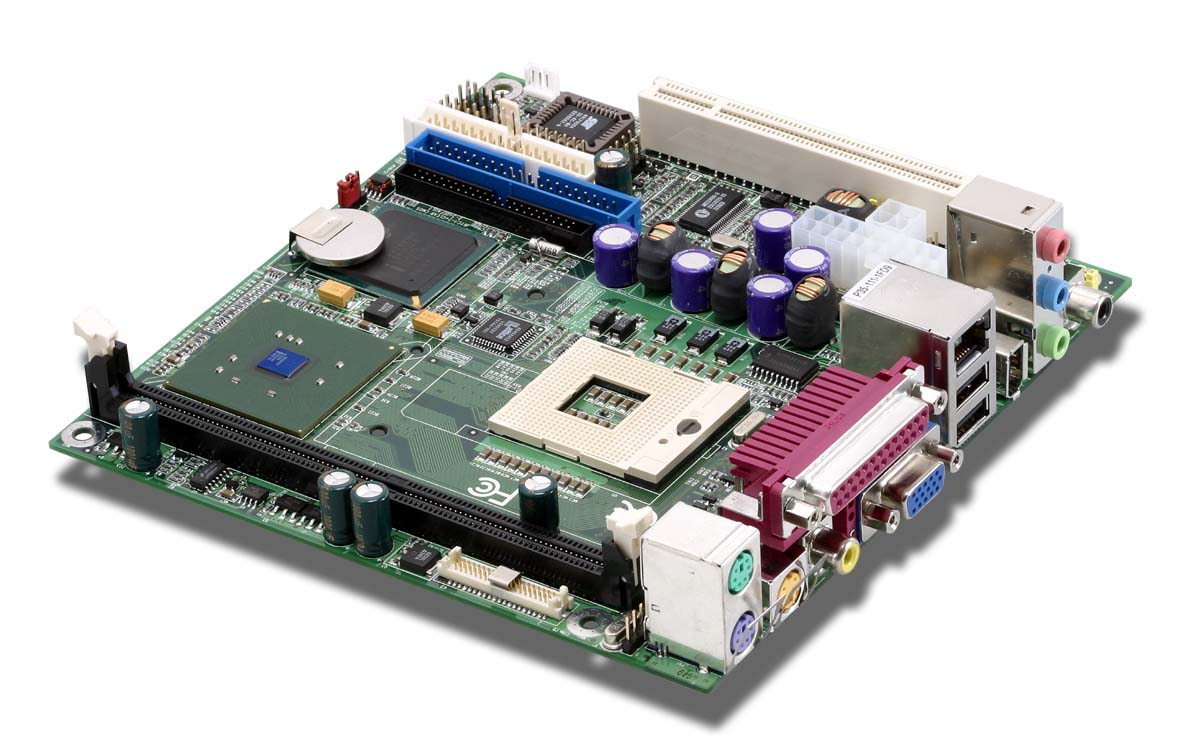

view larger image
.
Overview
COMMELL LV-670M is an all-in-one industrial compact Pentium 4 level Mini-ITX embedded motherboard based on mobile Intel Pentium 4-M platform. With the features come from Intel's latest mobile CPU technology, COMMELL LV-670M offers the advanced computing s
In spite of the features of mobile Intel Pentium 4-M, COMMELL LV-670M are based on Intel 845GV and ICH4 chipset, and integrated with Intel NetBurst microarchitecture, 400 MHz FSB, 1 GBytes DDR266/333 SDRAM, Intel Extreme Graphics, 24-bit Dual Channel LVDS multimedia workstation, Panel PC, car PC, book-size and slim-type PC, DVR (Digital Video Recorder), STB (Set-Top-Box) and industrial compact computing platform.

Compact Mini-ITX Form Factor @ 170 x 170 mm

COMMELL is based on the ultra compact Mini-ITX form factor at 170 x 170 mm of dimension, meets the demand of compact and powerful computing platform. With the compact board size, COMMELL LV-670M can meet most of the industrial embedded PC application.

Mobile Intel Pentium 4 Processor-M Platform

Based on Intel latest technology on the mobile solution, COMMELL LV-670M is integrated with mobile Intel Pentium 4-M embedded CPU with Intel NetBurst Microarchitecture, 400 MHz FSB, 512KB L2 advanced transfer cache, Intel Hyper Pipelined technology, rapid n for embedded, low power, compact and mobile industrial computing platform.

Onboard Single/Dual Channel 18-/24-bit LVDS TFT LCD Interface

To meet the demand of LCD-based industrial PC application, COMMELL LV-670M is integrated with onboard LVDS transmitter and offers the 24-bit Dual Channel LVDS interface for TFT LCD with up to 1800 x 1200 of resolution and 24 bpp of color. With this featur
Value / High Performance Multimedia Solution

The advanced multimedia performance of COMMELL LV-670M comes from the embedded mobile Intel Pentium 4-M CPU, Intel 845GV chipset built-in Intel Extreme Graphics with 266 MHz VGA core, Intel Dynamic Video Memory up to 64 MBytes, and onboard AV / S-Video TV ng), video streaming, surveillance, POS, Kiosk, ATM, Panel PC, interaction and transaction workstation and terminal applications.

Hi-Speed USB 2.0 and IEEE 1394 Interface

COMMELL LV-670M offers both of Hi-Speed USB 2.0 interface with Intel ICH4 chipset and IEEE 1394 interface with onboard Agere FW323 chipset. The Hi-Speed USB 2.0 interface offers up to 480 Mbps and IEEE 1394 interface offers 100/200/400 Mbps of data transf
Embedded OS Compatibility and Solid State Flash Disk Interface

Based on Intel's platform, COMMELL LV-670M is compatible with popular embedded OS including Microsoft WinCE, WinCE.NET, Embedded NT, Embedded XP, Embedded Linux, QNX, VxWorks and others. The onboard IDE-based, bootable and driver free DiskOnModule fla

Back ToTop
Key Feature
Ultra compact Mini-ITX form factor at 170 x 170mm (W x L) of dimension

Mobile Intel Pentium 4 CPU up to 2.5 GHz at 400MHz FSB, on-die 512KB L2 cache, Micro-FCPGA package

Intel NetBurst microarchitecture, supports Intel Hyper Pipelined Technology, new Execution Trace Cache, Rapid Execution Engine, and 144 new Streaming SIMD instruction extensions.

High memory capacity with 1 GB DDR266/333 SDRAM

High reliability / compatibility and long term supply Intel embedded 845V/ICH4 chipset

Intel 82845GV GMCH built-in Intel Extreme Graphics with 266 MHz VGA core, 256-bit 3D engine and dynamic video memory

Onboard 24-bit Dual Channel LVDS interface for TFT LCD

Integrated Intel PRO/100+ 10/100 Mbps Fast Ethernet interface

Intel 82801DB ICH4 built-in Hi-Speed USB 2.0 with up to 480 Mbps of data transfer rate

Integrated IEEE 1394 interface with 100/200/400 Mbps of data transfer rate

One 40-pin and one 44-pin IDE port for both of desktop and slim type ATAPI devices

Integrated AC97 3D 5.1-CH & S/P DIF audio, AV / S-Video TV-out interface

SSD (Solid State Disk) interface with DiskOnModule flash disk

Pentium 4 additional +12V power free for standard ATX power supply

Back ToTop
Specification
Form Factor Mini-ITX form factor at 170 x 170 mm
CPU Micro-FCPGA Mobile Intel Pentium 4 / Celeron CPU
up to 2.5 GHz @ 400 MHz FSB
On-die 512KBytes Full-Speed Level 2 (L2) cache
Support Intel NetBurst Microarchitecture
Memory One 184-pin DIMM socket
Support up to 1 GBytes DDR266/333 SDRAM
Chipset Intel 845GV chipset with 82845GV GMCH and 82801DB ICH4
Watchdog Timer Programmable generates NMI or system reset watchdog timer
with 1 to 255 sec. / min. of time out value
Power Management ACPI 1.0 compliant, supports power saving mode with ATX PSU
Real Time Clock Intel ICH4 built-in RTC with onboard lithium battery
PCI Enhanced IDE Dual UltraATA/100 bus master IDE channels
Support up to 4 ATAPI devices on 40-/44-pin IDE ports
Jumper selectable Vcc power output on 40-pin IDE1
for power cable free DiskOnModule flash disk
VGA Interface Intel 845GV GMCH built-in Intel Extreme Graphics
with 266 MHz VGA core and 256-bit 3D engine
Intel Dynamic Video Memory up to 64 MB shared with system
External DB15 female connector on rear I/O panel
LVDS Interface Intel 845GV GMCH built-in Intel Extreme Graphics
with onboard Chrontel CH7017A built-in LVDS transmitter
Resolution up to 1600 x 1200 @ 16M colors
Support 24-bit Dual channel LVDS TFT LCD
Onboard 40-pin Hirose connector
TV-out Interface Intel 845GV GMCH built-in Intel Extreme Graphics
with onboard Chrontel CH7017A built-in TV-out encoder
External AV RCA and S-Video connector rear I/O panel
LAN Interface Intel ICH4 with onboard Intel 82562ET Phy
Intel PRO/100+ 10/100 Mbps Fast Ethernet interface
10/100Base-TX auto-switching, IEEE802.3U compliant
Audio Interface Intel ICH4 with onboard ACL650 AC97 3D audio codec
5.1 channel, line-in, line-out, Mic-in, CD-in and S/P DIF interface
IEEE1394 PCI Agere FW323 IEEE1394 controller
with 100/200/400 Mbps of data transfer rate
Hi-Speed USB 2.0 Intel ICH4 chipset built-in Hi-Speed USB 2.0 interface
with 480 Mbps of data transfer rate and bootable setting in BIOS
Multi-I/O Port Intel ICH4 and LPC Winbond W83627HF-AW super-I/O controller
1 x RS-232 serial ports, 1 x SPP/EPP/ECP parallel port
4 x Hi-Speed USB 2.0 ports with 480 Mbps of data transfer rate
IrDA port, Floppy port, PS/2 keyboard / mouse port
External I/O Port PS/2 keyboard / mouse port
AV RCA and S-Video TV-out, VGA, Parallel Port
Dual Hi-Speed USB 2.0, LAN
IEEE1394, 5.1-CH and S/P DIF Audio
Solid State Disk
(DiskOnModule) DiskOnModule IDE-based, bootable, driver free flash disk
Flash memory capacity up to 512 MBytes
Expansive Slot One 32-bit PCI slot supports 2 bus master PCI via riser card
Environment Power Requirement: Standard P4 ATX power input
Board Dimension: 170 x 170 mm (L x W)
Operation Temperature: 0 ~ 60oC (32 ~ 140oF)
Download Datasheet @ PDF format

Back ToTop
Ordering Guide
LV-670M Mini-ITX Socket 479 Pentium 4-M DDR3 Motherboard
Based on Intel 845GV GMCH and ICH4 Chipset
Support 533/400 MHz FSB, DDR266/333 SDRAM
Intel Extreme Graphic 3D VGA, 24-bit Dual Channel LVDS interface
Intel PRO/100+ LAN, Hi-Speed USB 2.0, IEEE 1394, 5.1-CH & S/P DIF Audio
and AV / S-Video TV-out Interface
OHS-P4M-1U Heat sink with Cooling Fan for Intel Pentium 4 -M CPU solution, 1U(H:26.5mm)
SPD-120-19 AC-DC Adapter with 19V, 120W DC Jack Output
SPD-150-19A AC-DC Adapter with 19V, 150W Mini DIN Output
DC/ DC IN DC/ DC Power Module for LV-670 Series
