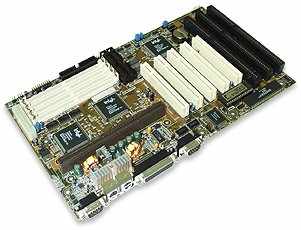

P6F40K-A5 TEKRAM
Technical Specifications: Processor: SLOT 1 architecture supports Intel® Pentium® II 233Mhz-366Mhz Intel® Celeron® Processors up to 533Mhz supported P6TS3 CPU S370 Adapter Card supports Intel® Celeron® CPUs up to 533Mhz P6SL1 CPU Card (Discontinued) supports Intel® Pentium® Pro 150Mhz-200Mhz Stepping Voltage Regulator P6SL1 Adapter for Pentium® Pro CPUs is not available. All P6F40K-A5 mainboards are shipped with BIOS 1.06 that supports Pentium® II & Celeron® CPUs. This BIOS does not support Pentium® Pro CPUs! BIOS 1.05 must be ordered to use the P6F40K-A5 with Pentium® Pro CPUs. Chipset: Intel® 440FX PCIset BIOS: Flash EPROM Award® PCI BIOS On screen "Plug-and-Play" Setup On-board Symbios® SCSI BIOS Cache Memory: Built-in to Pentium® II processor module System Memory: (4) 72-pin SIMM Sockets EDO DRAM and Fast Page Mode SIMMs BIOS Auto Detects DRAM type On-board Super I/O: (1) Floppy Controller (up to 2.88 MB) (2) Serial Ports (16550 UART) (1) Parallel Port (EPP/ECP) On-Board EIDE: (2) PCI Bus Master IDE Ports LBA Mode, Enhanced PIO Mode 4, HD Autodetect Expansion Slots: (5) 32-bit PCI Bus Master Slots (3) 16-bit ISA Slots Other Functions: (1) PS/2 Mouse Connector (1) PS/2 Keyboard Connector (1) USB Header Connector Board Size: ATX Form Factor: 305mm x 177.8mm (12.0" x 7.0") System Requirements: ATX Case & Power Supply CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TEKRAM Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
