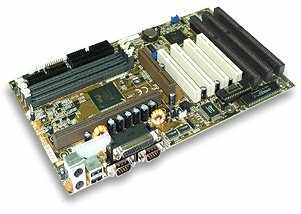

P6L40-A4E TEKRAM
Technical Specifications: Processor: SLOT 1 architecture supports Intel® Pentium® II (up to 366Mhz - Pentium® II CPUs over 366Mhz use 100Mhz FSB which this board DOES NOT support) Intel® SLOT 1 Celeron® Processors up to 533Mhz supported Intel® Socket 370 Celeron® FC-PGA Processors up to 766Mhz supported using P6TS3 Adapter Card Speed Switching Voltage Regulator: 1.3V~3.5V Chipset: Intel® 440LX PCIset 60Mhz, 66Mhz, 75Mhz and 83Mhz Speeds supported BIOS: Flash EPROM Award® PCI BIOS On screen "Plug-and-Play" Setup On-board Symbios® SCSI BIOS Cache Memory: Built-in to Pentium® II processor module System Memory: (3) 168-pin DIMM Sockets Maximum 384MB RAM EDO DRAM DIMMs 3.3V SDRAM DIMMs: Non-Buffered, SPD EEPROM supported On-Board EIDE: (2) UltraDMA/33 PCI Bus Master IDE Ports LBA Mode, Enhanced PIO Mode, 4HD Autodetect On-Board Super I/O: (1) Floppy Controller (up to 2.88 MB) (2) Serial Ports (16550 UART) (1) Parallel Port (EPP/ECP) (2) USB Ports Expansion Slots: (1) AGP Slot (4) 32-bit PCI Bus Master Slots (3) 16-bit ISA Slots Dimensions: ATX Form Factor: 305mm x 195mm (12.0" x 7.7") System Requirements: ATX Case & Power Supply CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TEKRAM Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
