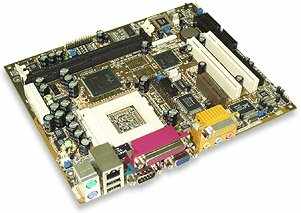

S381-FN TEKRAM
Technical Specifications: Processor: Socket 370 architecture supports Intel® Pentium® III & Celeron® processors up to 800Mhz Front Side Bus Speeds Supported: 66Mhz, 100Mhz CPU Speed Switching Voltage Regulator: 1.3V~3.5V VRM 8.4 Chipset: Intel® i810 Intel® i752 AGP 3D Graphics Controller Graphics Memory Controller Hub (GMCH) features Intel® graphics technology using Direct AGP for vivid 2D and 3D effects and images. Integrated Audio-Codec 97 Ccontroller BIOS: Flash EPROM Award® PCI BIOS On screen "Plug-and-Play" Setup Cache Memory: Built-in to Pentium® III or Celeron® CPU System Memory: (2) 168-pin DIMM Sockets Maximum 512MB RAM Memory Speeds Supported: 66Mhz, 100Mhz, 133Mhz 3.3V SDRAM DIMMs supported: Non-Buffered, SPD EEPROM On-Board EIDE: (2) UltraDMA/66 PCI Bus Master IDE Ports LBA Mode, Enhanced PIO Mode, 4HD Autodetect On-Board Super I/O: (1) AC97 Sound On-Board (1) Floppy Controller (up to 2.88 MB) (2) Serial Ports (16550 UART - Com2 requires bracket (1) Parallel Port (EPP/ECP) (2) USB Ports (1) Game Port (1) RJ-45 Ethernet Port Expansion Slots: (2) 32-bit PCI Bus Master Slots (1) AMR (Audio Modem Risor) Slot Built-in LAN: RealTek 8139 10/100Mbps RJ-45 Connector built-in LEDs for Link and Activity Dimensions: FlexATX (7.5’’ x 9’’ / 190mm x 229mm) System Requirements: ATX, MicroATX or FlexATX Case & Power Supply CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TEKRAM Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
