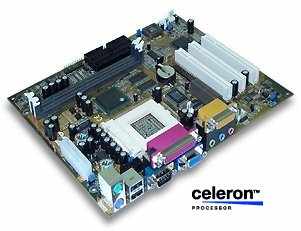

S381-M+ TEKRAM
Technical Specifications: Processor: Socket 370 architecture supports Intel® Pentium® III & Celeron® processors *Hardware Version 2.01 or higher is required to support Pentium® III CPUs. S381-M+ mainboards currently sold on Tekram's Online Store are version 1.01 that DO NOT support Pentium® III. CPU Speed Switching Voltage Regulator: 1.3V~3.5V VRM 8.4 Chipset: Intel® 810-DC100 PCIset Integrated 4MBytes Video Cache Memory Graphics Memory Controller Hub (GMCH) features Intel® graphics technology using Direct AGP for vivid 2D and 3D effects and images. The Integrated Audio-Codec 97 controller enables software audio and modem by using the processor for sound and modem software. BIOS: Flash EPROM Award® PCI BIOS On screen "Plug-and-Play" Setup Cache Memory: Built-in to Celeron® CPU System Memory: (2) 168-pin DIMM Sockets Maximum 512MB RAM 3.3V SDRAM DIMMs supported: Non-Buffered, SPD EEPROM On-Board EIDE: (2) UltraDMA/66 PCI Bus Master IDE Ports LBA Mode, Enhanced PIO Mode, 4HD Autodetect On-Board Super I/O: (1) AC97 Sound On-Board (1) Floppy Controller (up to 2.88 MB) (2) Serial Ports (16550 UART) (1) Parallel Port (EPP/ECP) (2) USB Ports (1) Game Port Expansion Slots: (3) 32-bit PCI Bus Master Slots (1) AMR Audio Modem Riser Slot Dimensions: MicroATX (8.7’’ x 9.6’’ / 220mm x 245mm) System Requirements: ATX or MicroATX Case & Power Supply CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TEKRAM Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
