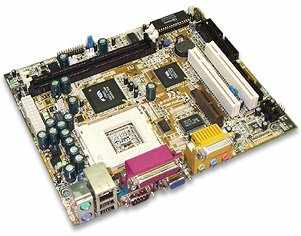

S3PM-FN TEKRAM
Technical Specifications: Processor: Socket 370 architecture supports Intel® Pentium® III FC-PGA & Celeron® processors up to 1Ghz Front Side Bus speeds supported: 66Mhz, 100Mhz, 133Mhz CPU Speed Switching Voltage Regulator: 1.3V~3.5V VRM 8.4 Chipset: VIA Apollo ProMedia Northbridge: VT82C601 Southbridge: VT82C686A Integrated Trident Blade3D AGP Graphics ATA-66 EIDE Interface Integrated AC97 Audio Support for (4) USB Ports BIOS: Flash EPROM Award® PCI BIOS On screen "Plug-and-Play" Setup Cache Memory: Built-in to Socket 370 CPUs System Memory: (2) 168-pin DIMM Sockets Maximum 512MB RAM 3.3V SDRAM DIMMs supported: Non-Buffered, SPD EEPROM On-Board EIDE: (2) UltraDMA/66 PCI Bus Master IDE Ports LBA Mode, Enhanced PIO Mode, 4HD Autodetect On-Board Super I/O: (1) 10/100Mbps Ethernet Networking port On-board Sound: (1) Mic-In, (1) Speaker Out, (1) Line In (1) Floppy Controller (up to 2.88 MB) (2) Serial Ports (16550 UART - Com2 requires external bracket) (1) Parallel Port (EPP/ECP) (1) Video Out Port (2) USB Ports (1) Game Port Built-In Networking: Realtek RTL 8139B 10/100Mbps Link & Traffic LEDs located on LAN connector Expansion Slots: (2) 32-bit PCI Bus Master Slots (1) AMR Audio Modem Riser Slot Dimensions: FlexATX (7.5’’ x 9’’ / 190mm x 228mm) System Requirements: ATX, MicroATX or FlexATX Case & Power Supply CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TEKRAM Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
