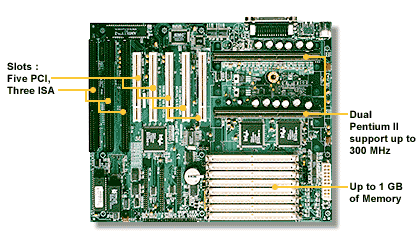

Tahoe Plus ATX - TYAN motherboard
Processor Dual Pentium II 233-300 MHz or Pentium Pro *** 150-200 MHz VRM Component installed on board One Slot 1 Connectors (SEC) Processor speeds: CPU compatibility chart Chipset Intel 440FX (NATOMA) System Memory Up to 1 GB On Board Eight 72-pin SIMM Sockets EDO or FPM DRAM Support ECC and Parity Support 4 memory banks total 3.3V and 5.0V Memory support Expansion Slots Five 32-bit PCI Bus Mastering Slots Three 16-bit ISA Slots One Shared PCI/ISA Slot - 7 usable Disk Drive & System I/O Two PCI Bus-Master enhanced IDE Ports 4 HDD + EIDE CD-ROM Support Bus-Mastering Mode 2 (Up to 22MB/Sec DTR) PIO Mode 3 & 4 (Up to 17MB/SEC DTR) Two Floppy Drive Support (Up to 2.88MB) Two 16550 High Speed Serial Ports One ECP/EPP High Speed Parallel Port 2 USB Ports Rev 1.2 One IR Port PS/2 Mouse port using IRQ 12 LM78 Option ** Server Level System Monitoring Voltage/Fan/Heat alarms Reports thermal information to O/S Intel LANDesk client manager software compatible as a Manufacturing Option BIOS AMI BIOS (Award BIOS Optional) Green PC Compatible Microsoft Plug and Play Ready Year 2000 / DMI 2.0 / Win98 Ready / Soft Power Form Factor ATX (9.75" x 12.00") Double Row ATX Connectors Type "V" I/O Shield (Intel Venus Compatible) Warranty 2 Year Manufacturer's Warranty Specifications may change without notice Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
