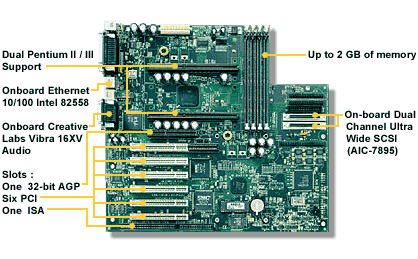

Thunder 100-GX - TYAN motherboard

Processor
Single or Dual Pentium II / III
Up to 100 MHz BUS Support
Two Slot 1 Connectors (SEC)
2 On-board CPU Fan Headers
2 On-board Case Fan Headers
2 VRM components installed on board
Processor speeds: CPU compatibility chart
Chipset
Intel 440GX (100 MHz AGP set)
Latest Generation Pentium II Chipset
SMC 932FR Super I/O Chipset
DEC PCI Bridge
System Memory
Up to 2GB Memory Support
Synchronous DRAM W/SPD
SDRAM + ECC
Four 168-pin DIMM Sockets
100 MHz SDRAM support [ Compatibility ]
Expansion Slots
Six 32-bit PCI Bus Mastering Slots
One 16-bit ISA Slot
One 32-bit AGP Slot
One Shared PCI/ISA Slot
Disk Drive & System I/O
Two UltraDMA/33 PCI Bus-Master EIDE Ports
Supports EIDE CD-ROMs
Bus-Mastering Mode 2 (Up to 22MB/SEC DTR)
PIO Mode 3 & 4 (Up to 17MB/SEC DTR)
Two Floppy Drive Support (Up to 2.88MB)
Two ATX Style 16550 High Speed Serial Ports
One ATX Style ECP/EPP High Speed Parallel Port
2 ATX USB Ports Rev 1.2
One IR (InfraRed) Port
One ATX PS/2 Mouse Port
One ATX PS/2 Keyboard Port
Wake on LAN / Wake on Ring headers **
Integrated Ethernet
Intel 82558 10/100 Ethernet On-board
Full Wake on LAN functionality*
One RJ-45 ATX Connector
Integrated Audio
Vibra 16XV Midi Audio Chip
One ATX Game Port
ATX Line In, MIC, and Speaker Ports
Integrated SCSI
Adaptec AIC7895 Dual Channel Ultra Wide SCSI
Two 68-pin High Density Ultra Wide SCSI Ports
One 50-pin SCSI-2 Port
Adaptec Ultra SCSI BIOS
RAID 0 and 1 Support with optional Adaptec
ARO-1130CA PCI Controller Card (Raidport II)
Voltage and Power
ATX Power Supply Connector
+12V Power Source for DC-FAN
3.3V DRAM Support
Utilizes GTL+ Bus, Reducing Power Consumption and EMI
LM79/LM75 control chips with on-board alarm for heat, fan and voltage. Reports to the operating system for system monitoring.
System Management Software included.
Chassis Intrusion Detection Capable
BIOS
AMI Plug 'n' Play 2Mb flash BIOS Standard
Deep Green / Energy Star / PC97 compliant
Yellow LED for Sleep mode
Year 2000 compliant
Form Factor
Extended ATX (13.0" x 12.0")
Double Row ATX Connectors
Type "P" I/O Shield (Intel Providence Compatible)
Warranty
3 Year Manufacturer's Warranty
Specifications may change without notice
Package List
- Thunder 100 motherboard / User's manual
- 40-pin IDE & 34-pin floppy cable pack
- One 9-pin Com port cable
- One Ultra Wide SCSI cable
- One regular SCSI cable
- Two retention modules
- One ATX I/O Shield
- Driver CD
Get the manual
Manual DOWNLOAD list.

CPU Support
Compatibility


RAM Memory Support
Compatibility
