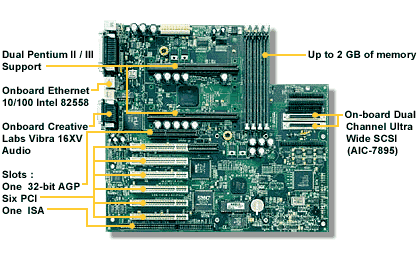

Thunder 100 - TYAN motherboard
Processor Single or Dual Pentium II / III Up to 100 MHz BUS Support Two Slot 1 Connectors (SEC) 2 On-board CPU Fan Headers 2 On-board Case Fan Headers 2 VRM components installed on board Processor speeds: CPU compatibility chart Chipset Intel 440BX (100 MHz AGP set) Latest Generation Pentium II Chipset SMC 932FR Super I/O Chipset DEC PCI Bridge System Memory Up to 1GB Memory Support (3.3V only) Synchronous DRAM W/SPD SDRAM + ECC Four 168-pin DIMM Sockets 100 MHz SDRAM support [ Compatibility ] Expansion Slots Six 32-bit PCI Bus Mastering Slots One 16-bit ISA Slot One 32-bit AGP Slot One Shared PCI/ISA Slot Disk Drive & System I/O Two UltraDMA/33 PCI Bus-Master EIDE Ports Supports EIDE CD-ROMs Bus-Mastering Mode 2 (Up to 22MB/SEC DTR) PIO Mode 3 & 4 (Up to 17MB/SEC DTR) Two Floppy Drive Support (Up to 2.88MB) Two ATX Style 16550 High Speed Serial Ports One ATX Style ECP/EPP High Speed Parallel Port 2 ATX USB Ports Rev 1.2 One IR (InfraRed) Port One ATX PS/2 Mouse Port One ATX PS/2 Keyboard Port Wake on LAN / Wake on Ring headers ** Integrated Audio Vibra 16XV Midi Audio Chip One ATX Game Port ATX Line In, MIC, and Speaker Ports Integrated Ethernet Intel 82558 10/100 Ethernet On-board Full Wake on LAN functionality* One RJ-45 ATX Connector Integrated SCSI Adaptec AIC7895 Dual Channel Ultra Wide SCSI Two 68-pin High Density Ultra Wide SCSI Ports One 50-pin SCSI-2 Port Adaptec Ultra SCSI BIOS RAID 0 and 1 Support with optional Adaptec ARO-1130CA PCI Controller Card (Raidport II) Voltage and Power ATX Power Supply Connector +12V Power Source for DC-FAN 3.3V DRAM Support Utilizes GTL+ Bus, Reducing Power Consumption and EMI LM79/LM75 control chips with on-board alarm for heat, fan and voltage. Reports to the operating system for system monitoring. System Management Software included. Chassis Intrusion Detection Capable BIOS AMI Plug 'n' Play 2Mb flash BIOS Standard Deep Green / Energy Star / PC97 compliant Yellow LED for Sleep mode Year 2000 compliant Form Factor Extended ATX (13.0" x 12.0") Double Row ATX Connectors Type "P" I/O Shield (Intel Providence Compatible) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Package List - Thunder 100 motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - One 9-pin Com port cable - One Ultra Wide SCSI cable - One regular SCSI cable - Two retention modules - One ATX I/O Shield - Driver CD Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
