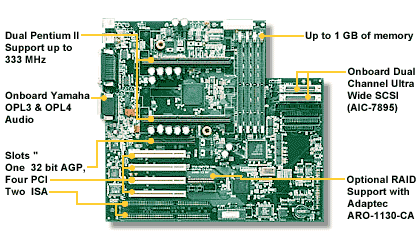

Thunder 2 ATX - TYAN motherboard
Processor Thunder 2 ATX Dual/Single Pentium II 233-333 MHz 2 VRM Components installed on board Two Slot 1 Connectors (SEC) (Dual CPUs must be of same Speed) Dual On-board CPU Fan Headers Dual On-board Case Fan Headers Processor speeds: CPU compatibility chart Chipset Intel 440LX (AGP Chipset) Latest Generation Pentium II Chipset System Memory Up to 1024MB EDO/ECC DRAM Support Synchronous DRAM W/SPD (Up to 512MB) Four 168-pin DIMM Sockets Expansion Slots Four 32-bit PCI Bus Mastering Slots Two 16-bit ISA Slots One 32-bit AGP Slot One Shared PCI/ISA Slot Disk Drive & System I/O Two UltraDMA/33 PCI Bus-Master EIDE Ports Supports EIDE CD-ROMs Bus-Mastering Mode 2 (Up to 22MB/ SEC DTR) PIO Mode 3 & 4 (Up to 17MB/SEC DTR) Two Floppy Drive Support (Up to 2.88MB) Two ATX Style 16550 High Speed Serial Ports One ATX Style ECP/EPP High Speed Parallel Port 2 ATX USB Ports Rev 1.2 One IR (InfraRed) Port One ATX PS/2 Mouse Port One ATX PS/2 Keyboard Port Integrated Audio OPL™3-SA3 Audio Chip OPL™4-ML WaveTable Synthesizer LSI One ATX Game Port ATX Line-in, MIC, and Speaker Out Ports Integrated SCSI Adaptec AIC7895 Dual Channel Ultra SCSI Two 68-pin High Density Ultra SCSI Ports One 50-pin SCSI-2 Port Adaptec Ultra SCSI BIOS RAID 0 and 1 Support (Requires optional Adaptec ARO-1130 PCI Controller Card) Voltage and Power ATX Power Supply Connector +12V Power Source for DC-FAN 3.3V DRAM Support Utilizes GTL+ Bus, Reducing Power Consumption and EMI LM78/LM75 Control Chip with on-board alarm for heat, fan and voltage. Reports to the operating system for system monitoring. Intel LANDesk Client Manager Software Included. Chassis Intrusion Detection Capable Windows 95 "Soft-power Down" Feature Power Recovery After Interrupt Feature Wake-on-LAN Feature Header (3-pin) *** BIOS AMI Plug 'n' Play flash BIOS Standard Deep Green / Energy Star / PC97 compliant Form Factor Extended ATX (12.25" x 12.00") Double Row ATX Connectors Type "C" I/O Shield (Intel Caveman Compatible) Warranty 2 Year Manufacturer's Warranty Specifications may change without notice Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
