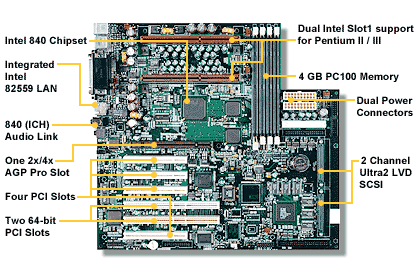

Thunder 2400 - TYAN motherboard
Processor Dual Intel Slot1 Intel Pentium II/III 350 to 8xx MHz Two on-board VRMs (VRM 8.4 spec) Front Side Bus support for 100/133 MHz Chipset Intel 840 AGPset - MCH+ICH+FWH (4Mb) Intel P64H to support 64-bit slots National PC87 366 LPC Super I/O chip System Memory Four 3.3V unbuffered / Registered PC100 DIMM sockets Maximum memory - 4GB Two MRH-S Chips on board Expansion Slots One 2x /4x /Pro AGP slot Four 32-bit PCI 2.1 slots Two 64-bit/ 66 MHz slots * Total seven usable slots * S2257 board supports both 3.3V and 5.0V add-on cards; however, the 64-bit PCI slot is based on 5.0V connector spec., so make sure 3.3V add-on cards are "universal" - can plug into either 3.3V or 5.0V connectors. Integrated PCI IDE Two 40-pin IDE connectors for up to 4 drives PIO Mode 3 / 4, UltraDMA 33 / 66 supported ATAPI IDE CD-ROM and LS-120 supported Integrated I/O One Floppy connector Two 9-pin 16550 UART Serial ports One 25-pin ECP / EPP Parallel port One IR TX / RX header - shares port with COM2 Two USB rev 1.2 ports PS/2 Mouse & Keyboard ports Integrated Audio 840 (ICH) Audio Link AC'97 Codec rev. 2.1 Line-in, Line-out, Mic ports 4-pin CD-ROM audio header (ATAPI) 4-pin Video audio header (ATAPI) Sound drivers for Win9x Integrated SCSI (optional) Dual Channel Ultra2 or Ultra3 LVD SCSI support Symbios 896 or /1010, up to 15 devices Channel A: 68-pin connector Channel B: 50-pin and 68-pin connectors Integrated LAN controller Intel 82559 LAN controller 10/100Mbps data transfer rate 3-pin Wake on LAN Alert on LAN II support (optional) System Management National hardware monitoring chip Six 3-pin Fan monitoring headers One 2-pin Chassis Intrusion header Temperature and voltage monitoring 3-pin Wake on Modem header Intel LANDesk Client Management driver BIOS Phoenix or AMI Server BIOS on 4 /8MB flash ROM (FWH) APM 1.2 / ACPI 1.0a Auto detection of memory size User settings of HW monitoring Auto configuration of IDE hard disk types Multiple boot options ACPI Bi-color LED for PC99 DMI 2.0 / PC99 compliant Form Factor ATX footprint (12" x 13" with corner cut) Six Layer board Two 20-pin ATX power connector Stacked Mouse/Keyboard ports Stacked (2) USB ports Stacked (2) Serial/ (1) Parallel connectors Line-In / Line-Out / Mic-In ports Regulatory FCC Class B (Declaration of Conformity) European Community CE (Declaration of Conformity) Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
