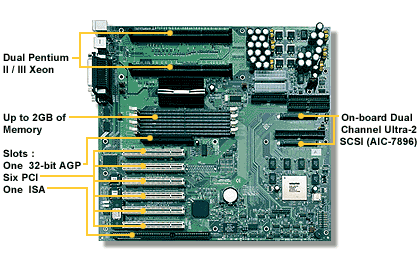

Thunder X - TYAN motherboard
Processor Single or Dual Pentium II Xeon Up to 100 MHz BUS Support Two Slot 2 Connectors 4 On-board CPU Fan Headers with speed control 2 On-board Case Fan Headers w/ on-off 3 VRM components installed on board (2 for CPUs / 1 for L2 cache) Processor speeds: CPU compatibility chart Chipset Intel 440GX (100 MHz AGP set) Latest Generation Slot 2 Chipset NS351 Super I/O Chipset System Memory Up to 2GB Memory Support Synchronous DRAM W/SPD SDRAM + ECC Four 168-pin DIMM Sockets 100 MHz SDRAM support [ Compatibility ] Expansion Slots Six 32-bit PCI Bus Mastering Slots One 16-bit ISA Slot One 32-bit AGP Slot One Shared PCI/ISA / 7 usable slots One RAIDPort III Slot Disk Drive & System I/O Two PCI Bus-Master EIDE Ports Supports EIDE CD-ROMs Bus-Mastering Mode 2 PIO Mode 3 & 4 Two Floppy Drive Support (Up to 2.88MB) Two ATX Style 16550 High Speed Serial Ports One ATX Style ECP/EPP High Speed Parallel Port 2 ATX USB Rev 1.2 Ports One IR (InfraRed) Port One ATX PS/2 Mouse Port One ATX PS/2 Keyboard Port Integrated SCSI Adaptec AIC7896 Dual Channel Ultra 2 LVD SCSI Two 68-pin High Density Ultra 2 SCSI Ports One 50-pin SCSI-2 Port Voltage and Power 2 ATX Power Supply Connectors ** +12V Power Source for DC-FAN 3.3V DRAM Support Utilizes GTL+ Bus, Reducing Power Consumption and EMI LM79/LM75 compatible control chips with on-board alarm for heat, fan and voltage. Reports to the operating system for system monitoring. Intel LANDesk Client Manager software included. Chassis Intrusion Detection Capable BIOS AMI Plug 'n' Play flash BIOS Standard Deep Green / Energy Star / PC97 compliant Blinking LED for Sleep mode & more Year 2000 compliant Form Factor On-board Dual Channel Ultra 2 SCSI Extended ATX (13.0" x 12.0") Double Row ATX Connectors Type "V" I/O Shield (Intel Venus Compatible) Chassis Info Chassis for the S1952 MUST be compatible with Intel´s Marlin Spike Slot2 Chassis. It is also very important that you use an Intel Venus Compatible I/O Shield. Click here for a list of Tyan-qualified Chassis. Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Package List - ThunderX motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - One Ultra 2 LVD 68-pin SCSI cable - One 50-pin SCSI cable - One CPU retention module set - System Management & Driver CD (Intel LANDesk) Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
