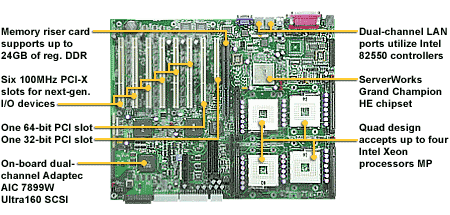

Thunder GC-HE (S4520) - TYAN motherboard
Specifications Processor • Quad PGA603 ZIF sockets • Supports up to four Intel® Xeon™ processors MP • Four VRM 9.1 current share sockets • Source synchronous bus of 200MHz • Front-Side Bus support for 400MHz Chipset • ServerWorks Grand Champion HE chipset • ServerWorks CMIC host bridge • ServerWorks CIOB-X 3.0 I/O bridges (two) • ServerWorks CSB5 south bridge • National NS87417 Super I/O ASIC Memory • Twelve 184-pin 2.5V DDR DIMM sockets • Supports up to 24GB of Registered DDR RAM • Memory Expansion Card (MEC) design • Multi-bit memory ECC, memory scrubbing Expansion Slots • Six 64-bit 100MHz (3.3V) PCI-X Hot Plug slots • Each CIOB-X supports two PCI-X buses with two PCI-X slots on each bus • One 64-bit 66/33Mhz and one 32-bit 33MHz (5-volt) PCI slot • Total of eight usable slots Integrated I/O • One floppy connector supports up to two drives • Two 9-pin 16550-based serial ports • One 25-pin ECP/EPP/SPP parallel header • PS/2 keyboard and mouse portst; two USB ports Integrated PCI IDE • Dual-channel master mode • Up to four Enhanced IDE devices • Support for ATA-100/66/33 IDE and ATAPI- compliant devices Integrated SCSI • Adaptec AIC-7899W controller • Dual-channel Ultra160 SCSI support • 160MB/sec per channel; 15 LVD devices per channel • Channel A and Channel B - 68-pin connectors System Management • Winbond W83782D hardware monitoring ASIC • Temperature, voltage, and fan monitoring • 2-pin chassis intrusion header Server Management (daughtercard opt) • TYAN Server Management Connector, 50-pin Q-Logic Zircon Baseboard Management Controller (BMC) • Supports the Intelligent Platform Management Interface (IPMI) • One SMB, one IPMB serial interface (2 isolated 5v connectors) • Two I2C private busses, EMP, and fault resilient booting Integrated LAN Controllers • Dual LAN controllers - Two Intel 82550 controllers (with TCO) • 10/100Mbps data transfer rate per controller • 3-pin Wake-on-LAN (WoL) header (two) Integrated Video • ATI® RAGE™ XL graphics controller • 4MB frame buffer • Standard 15-pin analog VGA port BIOS • Phoenix™ BIOS on 4Mbit Flash ROM • Supports APM v1.2 and ACPI v1.0 • User settings for hardware monitoring • Auto-configuration of IDE hard drive types • Multiple boot options • DMI 2.0 compliant, console redirection Form Factor • SSI MEB footprint (16"x13", 406.4x330.2mm) • Compatible with 4U rackmount height restriction • Application-specific power connector suite; adapter included for compatibility with EPS12V power supply • Stacked parallel (one), serial (two) and VGA (one) ports; Stacked USB (twp) ports • Side-by-side LAN (two) ports • Stacked keyboard and mouse ports Regulatory • FCC Class B (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
