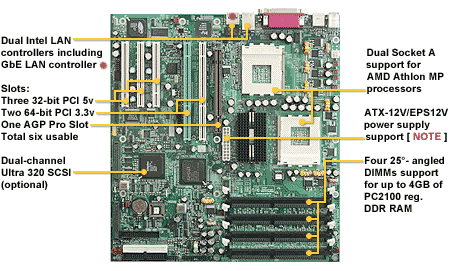

Thunder K7X Pro (S2469) - TYAN motherboard
Specifications [ AMD Recommended ] Processor • Dual mPGA462 ZIF sockets • Supports up to two AMD Athlon MP processors • Two onboard 3-phase VRMs • Front-Side Bus support for 266/200MHz Chipset • AMD-760 MPX chipset; • AMD-762 north bridge & AMD-768 south bridge • Winbond™ W83627HF Super I/O ASIC • Winbond W83782D hardware monitoring IC Memory • Four 184-pin 2.5-Volt DDR DIMM sockets • 25° DDR sockets enable rackmount installation • Supports up to 4GB* of Registered DDR 200/266 • Supports ECC (72-bit) memory modules Expansion Slots • One AGP Pro110 slot; also supports 4x/2x AGP • Two 64-bit 66MHz (3.3-Volt) PCI slots • Three 32-bit 33MHz (5-Volt) PCI slots • Total of six usable slots Integrated I/O • One floppy connector supports up to two drives • Two 9-pin serial connectors • One 25-pin ECP/EPP/SPP parallel header • Four USB 1.1 ports (two via optional cable) • PS/2 keyboard and mouse connectors Integrated PCI IDE • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices • Supports for UDMA-100/66/33 IDE drives and ATAPI-compliant devices Integrated SCSI (opt) • Adaptec AIC-7902W dual-channel controller; Ultra320 SCSI support • Support up to 15 LVD SCSI devices per channel • Channel A and Channel B - 68-pin connectors • Adaptec and Intel Zero-Channel RAID ready Integrated Video • ATI® RAGE™ XL PCI graphics controller • 8MB frame buffer of video memory Integrated LAN Controllers • Fast Ethernet and Gigabit Ethernet controllers - Intel® 82545EM 10/100/1000Mbps controller - Intel® 82551QM 10/100Mbps controller • Two RJ-45 LAN connectors with LEDs • Two Front Panel LED headers System Management • 3-pin fan monitoring headers • Winbond W83782D hardware monitoring ASIC • CPU temperature and voltage monitoring Server Management (Daughtercard opt) • QLogic™ Zircon Baseboard Management • BMC based on powerful ARM7 technology • Tailored for IPMI highest 1.5 Spec. • Supports KCS and BT styles • Supports Windows/Linux Management solution • Supports RMCP and SNMP protocols • Supports ASF standard and EMP • I2C serial multi-master controllers and UARTs • Built-in IPMB connector • Supports remote Power on/off and reset (IPMI over LAN) BIOS • Phoenix BIOS on 4Mbit Flash ROM • PXE boot and SMBIOS v2.3 support • BIOS Boot specification v1.01 (BBS) support • Boot to USB (Mass Storage Class) support • Power on after AC failure control; ACPI support Form Factor • Extended ATX Footprint - (13" x 12", 330.2mm x 304.8mm) • ATX12V/EPS12V** universal power connectors • Stacked parallel (1), serial (1) and VGA (1) ports • Stacked USB (2) ports • Side-by-side RJ-45 LAN (2) ports with LEDs • Stacked keyboard and mouse ports Regulatory • FCC DoC (Declaration of Conformity) certified • European CE (Declaration of Conformity) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
