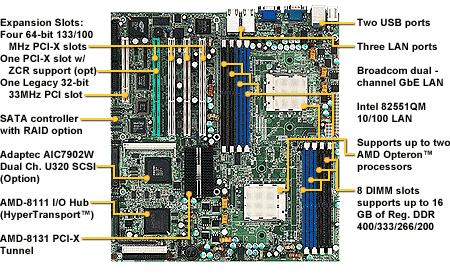

Thunder K8S Pro (S2882) - TYAN motherboard
Specifications Processor • Dual µPGA 940-pin ZIF sockets • Supports up to two AMD Opteron™ processors • Two onboard 3-phase VRMs • 128-bit DDR dual-channel memory controller (integrated in CPU) Chipset • AMD-8131™ HyperTransport™ PCI-X Tunnel • AMD-8111™ HyperTransport™ I/O Hub • Winbond™ W83627HF Super I/O ASIC • Analog Devices ADM1027 Hardware Monitoring IC Memory • 128-bit DDR memory bus • Eight 184-pin 2.5-Volt DDR DIMM sockets - each CPU controls four • Supports up to 16GB of Registered DDR • Supports ECC type memory modules • Supports PC3200 / 2700 / 2100 / 1600 DDR Expansion Slots (Total of five usable slots) • Two independent PCI-X buses • PCI-X bridge A supports 64-bit 133/100/66/33 MHz with two 3.3V PCI-X slots (one with ZCR support - option) • PCI-X bridge B supports 64-bit 133/100/66/33 MHz with two 3.3V PCI-X slots • One legacy 32-bit 33 MHz (5V) PCI slot Back Panel I/O Ports • Stacked PS/2 mouse and keyboard ports • Stacked two USB v1.1 ports + 1 RJ45 10/100 Base-T port w/ activity LED • Two 9-pin UART serial ports • One 15-pin VGA port • Two RJ45 10/100/1000 Base-T ports with activity LED Integrated I/O • One floppy connector supports up to two drives • One 9-pin serial ports connector • One 25-pin parallel port connector • Four USB v1.1 ports • Three front panel LAN activity LED connectors System Management • Seven 3-pin fan headers with tachometer monitoring • Five fan headers with (PWM) speed control • One 2-pin Chassis Intrusion header • Temperature, voltage and fan monitoring Integrated Enhanced IDE Controller • Dual IDE channels supports up to four EIDE devices • Supports for UDMA 33/66/100/133 IDE drives and ATAPI compliant devices Integrated PCI Graphics • ATI® RAGE™ XL PCI graphics controller • 8MB Frame Buffer of video memory Integrated LAN Controllers • Broadcom BCM5704C dual-channel GbE - Two RJ-45 LAN connectors with LEDs - Connected to PCI-X Bridge A • Intel 82551QM 10/100 LOM - Operating at 32-bit/33MHz PCI bus Integrated SATA Controller • Silicon Image Sil3114 SATA RAID Accelerator • Supports S-ATA 1.0 specification • Supports 4 channel SATA port for up to four SATA devices • Supports RAID 0, 1, 10 • Connected to legacy 32-bit 33MHz PCI bus Integrated Dual Channel SCSI (option) • Adaptec AIC-7902W Ultra 320 SCSI controller • Connects to PCI-X Bridge A • Adaptec® zero-channel RAID technology support Intelligent Platform Management Interface Header • TYAN Server Management Daughter card (optional) supports features listed below via IPMI header • QLogic™ Zircon Baseboard Management Controller (BMC) • Tailored for IPMI highest 1.5 Spec. • Supports KCS and BT styles • Flexible Windows/Linux Management Solution • Supports RMCP and SNMP protocols • Supports ASF standard and EMP • I2C serial multi-master controllers and UARTs • Build-in IPMB connector • Remote power on/off and reset support (IPMI-over-LAN) BIOS • AMI® BIOS 8.0 on 4Mbit LPC Flash ROM • Supports APM 1.2 & ACPI 1.0 • Power Management S1, S4, and S5 support Form Factor • Extended ATX footprint (13" x 12", 304.8x330.2mm) • EPS12V (24pin + 8pin) power connectors Regulatory (download) • FCC Class B (Declaration of Conformity) • CE (Declaration of Conformity). CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
