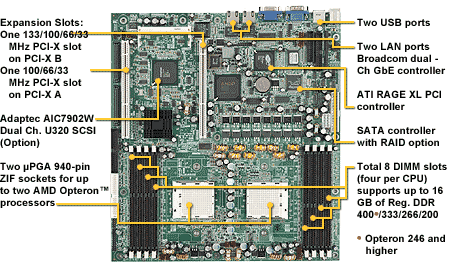

Thunder K8SR (S2881) - TYAN motherboard
Specifications Processor • Dual µPGA 940-pin ZIF sockets • Supports up to two AMD Opteron™ processors • 128-bit DDR dual-channel memory controller • (integrated in CPU) Chipset • AMD-8131™ HyperTransport™ PCI-X Tunnel • AMD-8111™ HyperTransport™ I/O Hub • Winbond™ W83627HF Super I/O ASIC • Analog Devices ADT7463 Hardware Monitoring IC Memory • 128-bit DDR memory bus • Eight 184-pin 2.5-Volt DDR DIMM sockets - each CPU controls four • Supports up to 16GB of Registered DDR • Supports ECC type memory modules • Supports DDR 400* / 333 / 266 / 200 * Opteron 246 and higher Expansion Slots • Two independent 64-bit PCI-X buses • One 100/66/33 MHz (3.3-volt) PCI-X slots - from PCI-X bridge A • One 133/100/66/33 MHz (3.3-volt) PCI-X slot • Total of two usable slots Integrated I/O • One floppy connector support up to two drives • Two 9-pin serial ports - one connector and one header • One 25-pin SPP/ECP/EPP parallel header • Four USB 1.1 ports (two rear and two header) • One 15-pin VGA connector • PS/2 mouse and keyboard connectors System Management • Total of nine 3-pin fan headers • Six fan headers with monitoring • One 2-pin Chassis Intrusion header • Temperature, voltage and fan monitoring • Port 80h LED 7-segment display Integrated Enhanced IDE Controller • Two IDE dual-drive ports for up to four EIDE devices • Supports for UDMA 133/100/66/33 IDE drives and ATAPI devices Integrated LAN Controller • Broadcom BCM5704C dual-channel GbE LAN - Two RJ-45 LAN connectors with LEDs - Connected to PCI-X Bridge A • Two Front Panel LED headers Integrated PCI Graphics • ATI® RAGE™ XL 8MB PCI graphics controller Integrated SATA/SATARAID Controller • One Silicon Image SI3114 controller • Four SATA 1.0 ports • RAID 0, 1, 10 support (optional) • Supports up to four Serial ATA150 drives Integrated SCSI Controller (option) • Adaptec 7902 U320 SCSI controller • Two U320 68-pin SCSI connectors • Connects to PCI-X Bridge A • Adaptec ZCR support through low-profile SO-DIMM Card Intelligent Platform Management Interface Header • TYAN Server Management Daughter card (optional) supports features listed below via IPMI header • QLogic™ Zircon Baseboard Management Controller (BMC) based on powerful ARM7 technology • Tailored for IPMI highest 1.5 Spec. • Supports KCS and BT styles • Flexible Windows or Linux Management Solution • Supports RMCP and SNMP protocols • Supports ASF standard and EMP • I2C serial multi-master controllers and UARTs • Build-in IPMB connector • Remote power on/off and reset support (IPMI-over-LAN) BIOS • AMI® BIOS 8.0 on 4Mbit LPC Flash ROM • Supports ACPI 2.0 and SRAT • Supports PXE via Ethernet, USB device boot • SMBIOS 2.3.1, BBS 1.1 compliant • Headless Operation via serial console redirect and remote flash • 48-bit LBA Support Form Factor • SSI EEB v3.0 footprint (12"x13"; 304.8x330.2mm) - fits many Rackmount chassis • EPS12V/SSI (24pin + 8pin) power connectors • Serial (one) and VGA (one) connectors • Stacked USB 1.1 (two) connectors • Stacked PS/2 keyboard and mouse connectors • Two RJ-45 LAN connectors with LEDs Regulatory • FCC Class B (DoC) • European Community CE (DoC). CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
