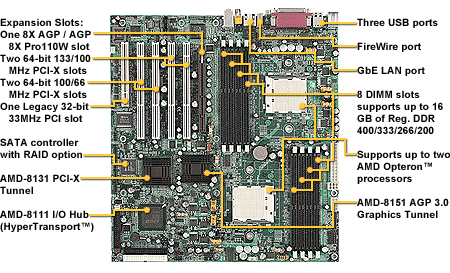

Thunder K8W (S2885) - TYAN motherboard
Specifications Processor • Dual µPGA 940-pin ZIF sockets • Supports up to two AMD Opteron™ processors • Two onboard 3-phase VRMs • 128-bit DDR dual-channel memory controller (integrated in CPU) Chipset • AMD-8151™ AGP 3.0 Graphics Tunnel • AMD-8131™ PCI-X Tunnel • AMD-8111™ I/O Hub • Winbond™ W83627HF Super I/O ASIC • Analog Devices ADT7463 Hardware Monitoring IC Memory • 128-bit DDR memory bus • Eight 184-pin 2.5-Volt DDR DIMM sockets - Four per CPU • Supports up to 16GB of Registered DDR • Supports ECC type memory modules • Supports PC3200 / 2700 / 2100 / 1600 DDR Expansion Slots (Total of six usable slots) • One 8X AGP / AGP 8X Pro110W slot • Two independent 64-bit PCI-X buses - Two 100/66/33MHz PCI-X slots (PCI-X A) - Two 133/100/66/33MHz PCI-X slots (PCI-X B) • One legacy 32-bit 33MHz (5-Volt) PCI slot Integrated I/O • One floppy connector supports up to two drives • One 25-pin parallel port connector and two serial (one connector, one header) • Five USB v1.1 ports (three rear connectors & two • front panel headers) • PS/2 mouse and keyboard connectors • Two FireWire (IEEE 1394a) ports (one rear • connector and one internal connector) System Management • Six 3-pin fan headers w/ tachometer monitoring • Four fan headers with (PWM) speed control • One 2-pin Chassis Intrusion header • Temperature, voltage and fan monitoring Integrated LAN Controllers • Broadcom BCM5703C GbE controller - One RJ-45 LAN connectors with LEDs - Connected to PCI-X Bridge A Integrated Enhanced IDE Controller • Two IDE dual-drive ports for up to four EIDE devices • Supports for UDMA 133/100/66/33 IDE drives and ATAPI compliant devices Integrated SATA Controller • Silicon Image Sil3114 SATA RAID Accelerator • Four SATA 1.0 ports • Supports up to four SATA drives • Supports RAID 0, 1, 0+1 (optional) Integrated FireWire Controller • TI TSB43AB22 IEEE 1394a PCI controller • Two FireWire ports (one rear connector and one front panel header, optional) Integrated Audio • AC'97 compliant audio link • Analog Devices 1981B • One RCA SPDIF connector • Line-In/Line-Out/Mic-In audio jacks • CD-in/Aux-in connectors BIOS • AMI® BIOS 8.0 on 4Mbit LPC Flash ROM • ACPI 2.0 • Serial Console Redirect • PXE via Ethernet • USB device boot • 48-bit LBA Support Form Factor • SSI EEB v3.0 footprint (12"x13"; 304.8x330.2mm) - fits in many ATX-compliant tower chassis • EPS12V/SSI (24 + 8 + 6 pin) power connectors • Serial (one) and parallel port (one) connectors • Stacked USB 1.1 (three) connectors • Stacked PS/2 keyboard and mouse ports • One RJ-45 LAN connector with LEDs • Audio Line-in, Line-out, Mic-in jacks • One RCA SPDIF (Co-Axial) connector • One IEEE 1394A port Regulatory • FCC DoC (Declaration of Conformity) certified • European CE (Declaration of Conformity). CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
