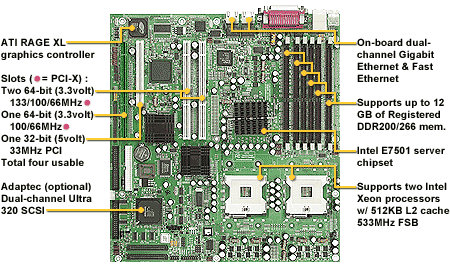

Thunder i7501 Pro (S2721-533) - TYAN motherboard
Processor • Dual mPGA604 ZIF sockets • Supports up to two Intel® Xeon™ processors with 512KB of integrated L2 cache • Onboard VRM (VRM 9.1 spec) • Front-Side Bus support for 533MHz Chipset • Intel® E7501 server chipset • MCH +ICH3 +P64H2 +P64H2(optional) +FWH • Each Intel P64H2 supports two PCI-(X) buses • Winbond™ W83627HF Super I/O chip • Winbond™ W83782D hardware monitoring IC Memory • Six 184-pin 2.5V DDR DIMM sockets • Supports up to 12GB of Registered DDR266/200 • Dual channel memory bus • Supports Registered memory only • Supports ECC type memory modules Expansion Slots (four usable slots) • Five independent PCI(-X) buses • Two 64-bit 133/100/66MHz (3.3V) PCI-X slots • One 64-bit 100/66MHz (3.3-Volt) PCI-X slot • One 32-bit 33MHz (5V) PCI slot Integrated I/O • One floppy connector supports up to two drives • Two 9-pin serial ports (one connector and one header) • One 25-pin ECP/EPP/SPP parallel header • Four USB 1.1 ports (two rear, two via header) • PS/2 keyboard and mouse connectors Integrated LAN Controllers • Intel® 82546EB dual-channel Gigabit Ethernet controller with LEDs - Two RJ-45 LAN connectors - Connected to independent 133MHz PCI-X bus • Intel® 82551QM Fast Ethernet controller - One RJ-45 LAN connector with LEDs - Three RJ-45 LAN connectors with LEDs Integrated Dual Channel SCSI (option) • Adaptec AIC-7902W controller • Dual-channel Ultra320 SCSI • Connects to PCI-X bus for maximum throughput • Adaptec Zero Channel RAID and Intel RAIDIOS ready System Management • Total of eleven 3-pin fan headers • Six fan headers with tachometer monitoring • One 2-pin chassis intrusion header • Temperature, voltage, and fan monitoring • Watchdog timer Server Management (option) • QLogic™ Zircon Baseboard Management Controller (BMC) based on powerful ARM7 • Tailored for IPMI highest 1.5 Spec. • Supports KCS and BT styles • Supports flexible Windows and Linux based Management Solution • Supports RMCP and SNMP protocols • Supports ASF standard and EMP • I2C serial multi-master controllers and UARTs • Built-in IPMB connector • Supports remote Power on/off and reset support (IPMI over LAN); SMDC via built-in 2x25 header Integrated PCI IDE • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices • Support for UDMA 33/66/100 IDE drives and ATAPI-compliant devices Integrated Video • ATI® RAGE™ XL PCI graphics controller • 8MB Frame Buffer of video memory BIOS • AMI BIOS 8.0 on 4Mbit Flash ROM • LAN remote boot (PXE) and SMBIOS v2.3 • BIOS Boot Specification v3.1 (BBS) support • Auto configuration of IDE hard drive types Form Factor • SSI EEB v3.0 footprint (12" x 13") - fits in many ATX-compliant tower chassis • EPS12V power connectors • Stacked parallel (one), serial (one) and VGA (one) connectors • Stacked USB (two) and RJ-45 LAN (one) port • Side-by-side RJ-45 LAN (two) connectors • Stacked PS/2, keyboard, and mouse connectors Regulatory • FCC DoC (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
