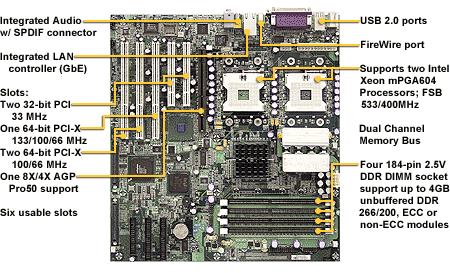

Thunder i7505 (S2665) - TYAN motherboard
Processor • Dual mPGA604 ZIF sockets • Supports up to two Intel® Xeon™ processors with 512KB of integrated L2 cache • Onboard VRM (VRM 9.1 spec) • Front-Side Bus support for 533/400MHz Chipset • Intel® E7505 chipset • MCH + ICH4 + P64H2 + FWH • Intel® P64H2 supports two PCI(-X) buses • Winbond™ W83627HF Super I/O chip • Analog Devices ADM1027 system monitoring chip Memory • Four 184-pin 2.5V DDR DIMM sockets • Supports up to 4GB of unbuffered DDR266/200 • Dual channel memory bus • Supports ECC/non-ECC memory modules Expansion Slots • Three independent PCI(-X) buses • One 8X/4X AGP Pro50 slot (1.5V) • One 64-bit 133/100/66MHz (3.3V) PCI-X slot • Two 64-bit 100/66MHz (3.3V) PCI-X slots • Two 32-bit 33MHz (5V) PCI slots • Total of six usable slots Integrated I/O • One floppy connector supports single drive • One 9-pin serial connector • One 25-pin ECP/EPP/SPP parallel header • Six USB 2.0 ports (four rear, two via header) • PS/2 keyboard and mouse connectors • One IEEE1394 (FireWire) port Integrated PCI IDE • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices • Support for UDMA-100/66/33 IDE drives and ATAPI-compliant devices Integrated SCSI (option) • Adaptec® AIC-7902 controller • Dual-channel Ultra320 SCSI • Adaptec® Zero-channel RAID and Intel RADIOS ready Integrated PCI 1394a Controller • TI TSB43AB22 PCI 1394A controller • Two 1394a ports (one external, one internal, opt.) System Management • Total of seven 3-pin fan headers • Six fan headers with tachometer monitoring • One 3-pin chassis intrusion header • Temperature, voltage, and fan monitoring Integrated LAN Controller • Intel® 82540EM Gigabit Ethernet Controller • One RJ-45 LAN connector with LEDs Integrated Audio • Intel® ICH4 AC'97 compliant audio link • ADI 1981A CODEC • Line-in, Line-out, Mic-in rear jacks - one RCA SPDIF connector • One 4-pin CD-ROM audio header (ATAPI) • One 4-pin Auxiliary audio header (ATAPI) BIOS • Phoenix™ BIOS 6.0 on 4/8Mbit Flash ROM • LAN remote boot (PXE) and SMBIOS v2.3 • BIOS Boot Specification v1.1 (BBS) support • Quick Boot and Multiple Boot support • ACPI v2.0 (S1, S4, and S5) support Form Factor • SSI EEB v3.0 Footprint - fits in many E-ATX and SSI-compliant tower • chassis (12"x13", 304.8x330.2mm) • EPS12V (with WS 6-pin) power connectors • 1394A FireWire (two) connector • RJ-45LAN (one) connector with LEDs • Stacked parallel (one), serial (one) connector • Stacked USB (four) connectors • Stacked PS/2 keyboard and mouse connectors • Audio Line-in, Line-out, Mic-in jacks • One RCA SPDIF connector Regulatory • FCC Class B (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
