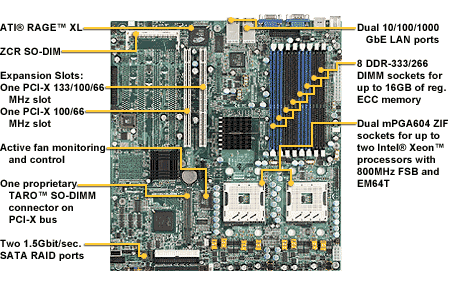

Thunder i7520R (S5360-1U) - TYAN motherboard
Specifications Processor • Dual mPGA604 ZIF sockets; onboard EVRD 10.1 • Supports up to two Intel® Xeon™ processors "Nocona" processors supported • Intel® EM64T support • Front-Side Bus support for 800MHz Chipset • Intel® E7320 ("Lindenhurst-VS") chipset • MCH North Bridge and ICH5R South Bridge chips • One PXH I/O Bridge chip • Winbond W83627HF Super I/O chip Memory • Eight DDR-333/266 DIMM sockets • Supports up to 16GB of Registered ECC memory Expansion Slots • One PCI-X 133/100/66 MHz slot • One PCI-X 100/66 MHz slot • Two PCI-X independent buses • One proprietary 200-pin TARO™ SO-DIMM connector (on PCI-X bus) Integrated I/O • One floppy connector for up to two drives • Six USB 2.0 ports (two rear, four front via cable) • Two 9-pin UART serial support (1 via cable, opt.) • One 25-pin ECP/EPP parallel header • PS/2 mouse and keyboard stacked connectors Integrated LAN Controller • Dual 10/100/1000 GbE LAN ports • Intel 82546GB controller • Supports ASF 1.0 or IPMI 1.5 • Two RJ45 connectors with LEDs Integrated PCI IDE • Provides two PCI bus master channels for up to four UDMA IDE devices • Supports UDMA 100/66/33 IDE & ATAPI devices Integrated Serial ATA • Provides independent DMA operation on 2 ports • Data transfer rates up to 1.5 GB/sec. • Supports RAID 0 or 1 (with 82801 ER/ICH5R chip) • Adaptec's driver and option ROM System Management • ADI ADT7463 H/W Monitor IC • Six 3-pin system fan headers • Three 4-pin (3-pin compatible) fan connectors • Tachometer monitoring and PWM control • One 2-pin chassis intrusion header • Temperature and voltage monitoring • Watchdog timer; optional TYAN M3289 or M3290 SMDC (Server Management Daughter Card) IPMI 1.5 via 2x25 header Integrated Video • ATI® RAGE™ XL PCI graphics controller • 8MB Frame Buffer of video memory Optional Module • M3289, IPMI SMDC card - QLogic Zircon BMC - Tailored for IPMI highest 1.5 spec. - Built-in IPMB connector - Supports remote Power on/off and reset • M7902 SO-DIMM Ultra 320 SCSI card - Adaptec AIC-7902 dual-channel Ultra320 - SCSI controller - operates at 64-bit PCI-X bus - Supports Intel®'s RAIDIOS™ and Adaptec's - Zero-Channel RAID logics - Supports Adaptec's HostRAID™ - Two 68-pin SCSI connectors • Riser support - Tyan M2044 (2U Riser w/ 3 PCI-X slots) - Tyan M2360 (2U Riser w/ 3 PCI-X slots in 3 independent PCI-X 133 MHz buses) - Tyan M2364 (2U Riser with one PCI-Exp x4 slot and two PCI-X slots) - Tyan M2033 1U riser • SATA RAID module (optional) - M8110/M8120 - Adaptec/Marvell 64-bit PCI-X SATA-I controller - Eight or four 1.5 GB/sec. SATA ports - High-performance command queuing with EDMA support - Supports SATA RAID 0, 1, 10 - Adaptec ZCR support BIOS • Phoenix BIOS 8 Mb flash ROM • Supports ACPI Power Management: S1, S4 & S5 • Auto detection of memory size • Auto configuration of IDE hard disk types • User settings of hardware monitoring • Multiple boot options including PXE • Supports console re-direction Form Factor • Extended ATX (12" x 13"; 305mm x 330mm) • One EPS ATX/12V 24-pin system power connector • One SSI EEB v3.51 compliant 8-pin split CPU power connector • Serial (1), parallel (1) and VGA (1) connectors • Stacked USB (2) ports • RJ-45 connectors • Stacked PS/2 keyboard and mouse connectors Regulatory • FCC Class B (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
