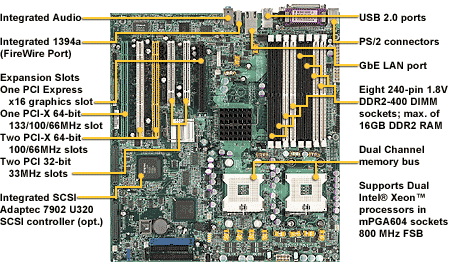

Thunder i7525 (S2676) - TYAN motherboard
Specifications Processor • Dual mPGA604 ZIF sockets • Up to two Intel® Xeon™ processors • Dual onboard 4-phase VRDs (VRD 10.1 spec.) • Front-Side Bus support for 800MHz Chipset • Intel® E7525 chipset • MCH + ICH5R + PXH + FWH • Intel® PXH supports two PCI-(X) buses • Winbond™ Super I/O chip • ™Analog Device ADM1027 hardware monitor chip Memory • Eight 240-pin 1.8V DDR2-400 DIMM sockets • Supports up to 16GB DDR2 RAM • Dual channel memory bus Expansion Slots • One PCI Express x16 Graphics slot • One PCI-X 64-bit 133/100/66MHz (3.3V) slot • Two PCI-X 64-bit 100/66MHz (3.3V) slots • Two PCI 32-bit 33MHz (5V) slot • Total of six usable slots Mass Storage I/O • Two Ultra DMA ATA100-Parallel IDE channels • Two SATA channels via Intel ICH5R Integrated I/O • Eight USB 2.0 ports (4 front via opt. cables) • Two serial ports (1 rear, 1 header via opt. cable) • One ECP/EPP/SPP parallel connector • Two IEEE1394a (FireWire) ports (1 rear, 1 front) • Supports one floppy drive • PS/2 mouse and keyboard connectors Integrated Audio • Intel® ICH5R AC'97 compliant audio link • AD1981B CODEC; Front panel audio header • Line-in, Line-out, Mic-in rear vertical jacks • One 4-pin CD-ROM audio input header • One 4-pin Auxiliary header Integrated SCSI (option) • Adaptec® 7902 U320 SCSI controller • Dual-channel Ultra320 SCSI • 2 x 68-pin internal connectors • ZCR support Integrated LAN Controller • Broadcom® BCM5751 PCI Express GbE LAN Integrated PCI 1394a (FireWire) • TI TSB43AB22 single-chip solution • Two ports (one rear, one header via opt. cable) System Management • 3-pin fan headers with tachometer monitoring • One 3-pin Chassis intrusion header • Temperature, voltage, & fan RPM monitoring BIOS • Phoenix BIOS on 4/8Mbit Flash ROM • Supports BIOS Boot Specification v1.1 (BBS) • Supports ACPI • Supports SMBIOS v2.3 • Supports LAN remote boot (PXE) Form Factor • Extended ATX/SSI EEB v3.5 footprint (12" x 13", 305 x 330.2mm); 8-layer PCB • EPS12V (24-pin + 8-pin) power connectors • Stacked PS/2 keyboard and mouse ports • Stacked one serial port and one parallel port • Stacked four USB 2.0 ports • One RJ-45LAN port with LEDs • One IEEE-1394a port • SPDIF-out port • One audio Line-in, Line-out, Mic-in vertical jacks (Amplifier integrated) Regulatory • FCC DoC (Declaration of Conformity) • European CE (Declaration of Conformity) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
