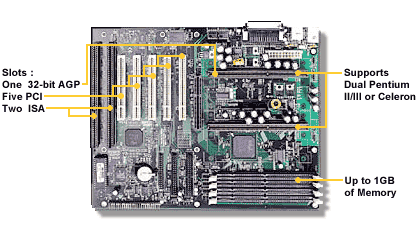

Tiger 100 - TYAN motherboard
Processor Single or Dual Pentium II / III Up to 100 MHz BUS Support 2 Slot 1 Connectors (SEC) 2 On-board CPU Fan Headers 2 On-board Case Fan Headers 2 VRM components installed on board Processor speeds: CPU compatibility chart Chipset Intel 440BX (100 MHz AGP set) Latest Generation Pentium II Chipset National "309" Super I/O Chipset System Memory Up to 1GB Memory Support (3.3V only) Synchronous DRAM W/SPD SDRAM + ECC Four 168-pin DIMM Sockets 100 MHz SDRAM support [ Compatibility ] Expansion Slots Five 32-bit PCI Bus Mastering Slots Two 16-bit ISA Slots One 32-bit AGP Slot One Shared PCI/ISA Slot Disk Drive & System I/O Two UltraDMA/33 PCI Bus-Master EIDE Ports Supports EIDE CD-ROMs Bus-Mastering Mode 2 (Up to 22MB/sec DTR) PIO Mode 3 & 4 (Up to 17MB/sec DTR) Two Floppy Drive Support (Up to 2.88MB) Japanese Mode 3 Floppy Support Two ATX Style 16550 High Speed Serial Ports One ATX Style ECP/EPP High Speed Parallel Port 2 ATX USB Ports Rev 1.2 One IR (InfraRed) Port One ATX PS/2 Mouse Port One ATX PS/2 Keyboard Port Wake on LAN / Wake on Ring headers *** Voltage and Power ATX Power Supply Connector +12V Power Source for DC-FAN 3.3V DRAM Support Utilizes GTL+ Bus, Reducing Power Consumption and EMI LM79/LM75 control chips with on-board alarm for heat, fan and voltage. Reports to the operating system for system monitoring. Intel LANDesk Client Manager software included. Chassis Intrusion Detection Capable Power recovery after interrupt feature Wake on LAN 3-pin header *** BIOS AMI Plug 'n' Play 2Mb flash BIOS Standard Deep Green / Energy Star / PC97 compliant Yellow LED for Sleep mode Year 2000 compliant Form Factor Extended ATX (9.8" x 12.0") Double Row ATX Connectors Type "V" I/O Shield (Intel Venus Compatible) Regulatory FCC Class B (Declaration of Conformity) European Community CE (Declaration of Conformity) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Package List - Tiger 100 motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - One System Management & Driver CD - Two Retention Module Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
