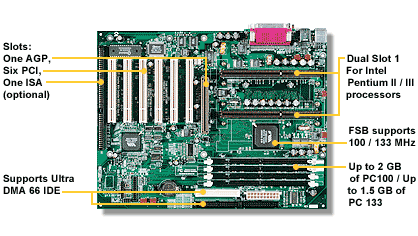

Tiger 133 - TYAN motherboard
Processor Dual Slot 1 Intel Pentium II / III processors 450 MHz to 1 GHz ( check CPU compatibility chart ) Front Side Bus support for 100 / 133 MHz Two onboard VRMs v 8.4 Auto-detect CPU Core Voltage Chipset VIA Apollo Pro 133A (VT82C694X & VT82C596B) Winbond W83977ATF Super I/O chip Winbond W83782D System Monitor System Memory Four 168-pin 3.3V DIMM Sockets Supports up to 2 GB PC100, 1.5 GB PC133 SDRAM [ Compatiblity List ] Cache Memory Processor Build-in 256/512-Kbyte L2 Hardware Monitoring Hardware monitoring chip 3-pin fan monitoring headers 2-pin chassis intrusion header CPU Thermal and Voltage monitoring 3-pin Wake on LAN header 3-pin Wake on Ring header Expansion Slots One 1X/2X/4X AGP v.2.0 slot Six 32-bit PCI v.2.2 Compliant slots One optional ISA slot (shared with one PCI slot) Total seven usable slots Integrated PCI IDE Dual channel master mode Support four Enhanced IDE devices Support for PIO Mode 3, 4, UDMA/66 IDE and ATAPI compliant devices Integrated I/O One floppy connector for up to 2 drives Two 9-pin 16550 UART Serial ports One 25-pin ECP/EPP Parallel port PS/2 Keyboard and Mouse Two USB v.1.0 Port BIOS Award BIOS 2Mbit Flash RAM Supports APM & ACPI Auto detection of memory size Auto configuration of IDE hard disk types User settings of hardware monitoring Multiple boot options DIM2.0 / PC99 compliant Voltage and Power One 20-pin ATX power connector Input Voltage - 90V to 130V at 60Hz Output Wattage - 235W Output Voltage - 3.3V, +/-5V, +/-12V Backup Battery - 3.0-V to 3.6-V Cr2032 lithium - Magnesium-oxide coin cell Form Factor ATX 2.01 (12" x 9.5") Stacked Mouse/Keyboard Ports Stacked two USB Ports Stacked two Serial & one Parallel Ports Type "V" I/O Shield (Intel Venus Compatible) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Regulatory FCC Class B (Declaration of Conformity) European Community CE (Declaration of Conformity) Package List - Tiger 133 motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - 80-pin ATA-66 IDE cable - Driver CD - Two URM Retention Modules Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
