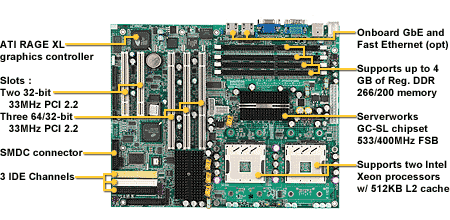

Tiger GC-SL (S2727) - TYAN motherboard
Specifications Processor • Dual PGA604 ZIF sockets • Supports up to two Intel® Xeon™ processors • Onboard VRM (VRM 9.1 spec) • Front-Side Bus support for 533/400MHz Chipset • ServerWorks Grand Champion SL chipset • CMIC-SL and CSB6 • National PC87417 LPC Super I/O ASIC Memory • Four 184-pin 2.5V DDR DIMM sockets • Supports up to 4GB of Registered DDR266/200 • Supports ECC type memory modules • Memory address mapping in Enhanced Mapping Mode • Fault isolation, Extensive error reporting, CRC detection and correction Expansion Slots • Three 64/32-bit 33MHz (3.3V) PCI 2.2 slots • Two 32-bit 33MHz (5V) PCI 2.2 slots • Total of five usable slots Integrated I/O • One floppy connector supports two drives • Two 9-pin UART serial ports (one connector and one header via an optional cable) • One 25-pin ECP/EPP/SPP parallel header • Four USB 1.1 ports (two rear connectors and two front USB headers via optional cables) • PS/2 keyboard and mouse connectors Integrated LAN Controllers (option) • Two Intel Ethernet controllers - one Intel 82551QM or 82550 10/100Mbps - one 82540EM GbE or 82551QM 10/100Mbps Integrated PCI IDE • Two ATA 100 and one ATA66 IDE channels • Supports up to six ATA/ATAPI IDE devices System Management • Total six 3-pin fan monitoring headers • ADI ADM 1027 and/or Winbond W83782D monitoring ASICs • One 2-pin chassis intrusion header • Temperature, voltage, and fan monitoring • IPMB connector; Watchdog timer • Supports Tyan SMDC (Server Management Daughter Card) Integrated Video (option) • ATI® Rage™ XL PCI graphics controller • 8MB frame buffer (SDRAM) BIOS • 4Mbit Flash ROM; ACPI support • Auto-detection of memory size • Auto-configuration of IDE hard drive types • Multiple boot options • ACPI power management: S1, S4 and S5 Form Factor • ATX (12"x9.6"); 6-layer PCB • ATX12V power connectors • Two RJ45 connectors • Stacked serial (one) and VGA (one) connector • Stacked USB (two) connectors • Stacked keyboard and mouse connectors Regulatory • FCC Class B (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
