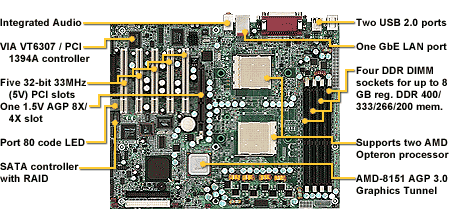

Tiger K8W (S2875) - TYAN motherboard
Specifications Processor • Dual µPGA 940-pin ZIF sockets • Supports up to two AMD Opteron™ processors • 128-bit DDR dual-channel memory controller • (integrated in CPU) Chipset • AMD-8151™ AGP 3.0 Graphics Tunnel • AMD-8111™ HyperTransport™ I/O Hub • Winbond™ W83627HF Super I/O ASIC Memory • 128-bit DDR memory bus • Four 184-pin 2.5-Volt DDR DIMM sockets • Supports up to 8GB of Registered DDR memory • Supports PC3200 / 2700 / 2100 / 1600 DDR Expansion Slots • Five 32-bit 33MHz (5V) PCI slots • One 1.5V AGP 8X/4X slot Back Panel I/O Ports • Stacked PS/2 mouse and keyboard ports • Stacked Two USB v1.1 ports • One 9-pin UART Serial port • One 25-pin SPP/ECP/EPP parallel port • Two FireWire (IEEE 1394a) ports (one rear • connector and one internal connector) • Stacked two USB v2.0 ports + one RJ45 10/100/1000 Base-T port w/ activity LED • Three audio jacks (Mic. In/Line-In/Line-Out) Integrated I/O • One floppy connector for up to two drives • Two USB v2.0 ports + two USB v1.1 ports • CD-in/Aux-in connector • Two 5-pin header for front panel audio connector • One IRDA connector • Power/IDE LED connectors • Six 3-pin headers for CPU/Chassis Fans System Management • W83627HF w/ hardware monitoring function • Six 3-pin fan headers (three with tachometer monitoring • Temperature and voltage monitoring • Port 80 code display LED Integrated Enhanced IDE Controller • Dual-channel master mode support up to four IDE devices • Supports for Ultra ATA/133/100/66 IDE drives and ATAPI compliant devices Integrated Audio • Realtek ALC655 • 6-channel AC'97 audio CODEC • Line-In/Line-Out/Mic-in audio jacks • CD-in/Aux-in connector Integrated LAN Controllers • One GbE LAN controller - Intel 82541EI GbE LAN controller - Operating at 32bit/33MHz PCI bus Integrated SATA Controller • Silicon Image Sil3114 SATA RAID Accelerator • Supports S-ATA 1.0 Specification • Supports 4 channel SATA port for up to four SATA devices • Supports RAID 0, 1, 0+1 • Connected to legacy 32-bit 33MHz PCI bus Integrated PCI 1394A Controller • VIA VT6307 PCI 1394A (FireWire) controller • Two IEEE 1394A ports (one port & one header) BIOS • AMI® BIOS 8.0 on 4Mbit LPC Flash ROM • Supports APM 1.2 & ACPI 1.0 • PnP, DMI2.0, WfM2.0 Power Management • Power Management S1, S4 and S5 support Power • On board VRM, 4-phase PWM • ATX12V/EPS12V Universal power connectors • 4-pin auxiliary power connector Form Factor • 6-layer PCB • ATX footprint (12" x 9.8"; 305mm x 250mm) Regulatory (download) • FCC DoC (Declaration of Conformity) certified • CE (Declaration of Conformity) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
