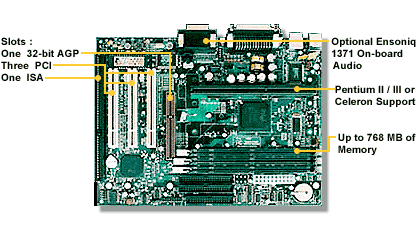

Tigercub 100 - TYAN motherboard
Processor Single Pentium II/III (Celeron supported) Up to 100 MHz BUS Support One Slot 1 Connector (SEC) On-board CPU Fan Headers On-board Case Fan Headers VRM component installed on board Processor speeds: CPU compatibility chart Chipset Intel 440BX (100 MHz AGP set) Latest Generation Pentium II Chipset National "351" Super I/O chipset System Memory Up to 768MB SDRAM Memory Support ** Synchronous DRAM W/SPD SDRAM + ECC Three 168-pin DIMM Sockets 100 MHz SDRAM support [ Compatiblity List ] Expansion Slots Three 32-bit PCI Bus Mastering Slots One 16-bit ISA Slot One 32-bit AGP Slot One Shared PCI/ISA Slot (4 usable slots) Disk Drive & System I/O UltraDMA/33 (UIDE) built-in (up to 33MB/s DTR) Two PCI Bus Mastering EIDE channels Supports EIDE CD-ROMs Bus-Mastering Mode 2 (Up to 22MB/s DTR) PIO Mode 3 & 4 (Up to 17MB/s DTR) Two Floppy Drive Support (Up to 2.88MB) Two ATX Serial Ports (16550 UARTs) One ATX ECP/EPP Parallel Port 2 ATX USB Rev 1.2 Ports One IR (InfraRed) I/O Interface Port One ATX PS/2 Mouse Port One ATX PS/2 Keyboard Port Integrated Audio Ensoniq 1371 PCI Wavetable audio chip AC97 codec / One ATX Game port ATX Line in, MIC, and speaker ports Voltage and Power ATX Power Supply Connector +12V Power Source for DC-FAN /w speed control 3.3V DRAM Support Utilizes GTL+ Bus, Reducing Power Consumption and EMI Power recovery after interrupt feature Wake-on-LAN Feature Header (3-pin) *** System Management ADM9240 control chip with on-board alarm for heat, fan and voltage. Reports to the operating system for system monitoring. Intel LANDesk Client Manager software optional. Chassis Intrusion Detection capable BIOS Award Plug 'n' Play flash BIOS Standard Deep Green / Energy Star / PC98 ready Yellow LED for Sleep mode Year 2000 compliant Form Factor Micro-ATX Design (7.5" x 9.0") Double Row ATX Connectors Type "C" I/O Shield (Intel Caymen Compatible) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Package List - Tigercub100 motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - CPU retention module - System Management & Driver CD (Intel LANDesk optional) with Ensoniq AudioPCI manual & installation instructions Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
