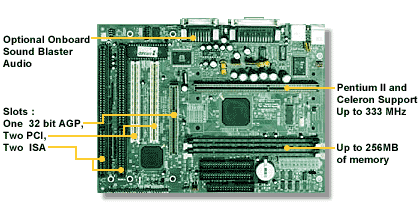

Tigercub ATX - TYAN motherboard
Processor Single Pentium II 233-333 MHz Celeron CPU supported One Slot 1 Connector (SEC) On-board CPU Fan Headers On-board Case Fan Headers VRM component installed on board Processor speeds: CPU compatibility chart Chipset Intel 440EX Latest Generation Pentium II Chipset ITE 8671 Super I/O Chipset System Memory Up to 256MB Memory Support Synchronous DRAM W/SPD or EDO DRAM Two 168-pin DIMM Sockets Expansion Slots Two 32-bit PCI Bus Mastering Slots Two 16-bit ISA Slots One 32-bit AGP Slot One Shared PCI/ISA Slot Disk Drive & System I/O Two UltraDMA/33 PCI Bus-Master EIDE Ports Supports EIDE CD-ROMs Bus-Mastering Mode 2 (Up to 22MB/SEC DTR) PIO Mode 3 & 4 (Up to 17MB/SEC DTR) Two Floppy Drive Support (Up to 2.88MB) Two ATX Style 16550 High Speed Serial Ports One ATX Style ECP/EPP High Speed Parallel Port 2 ATX USB Ports Rev 1.2 One IR (InfraRed) Port One ATX PS/2 Mouse Port One ATX PS/2 Keyboard Port Integrated Audio (optional) Creative / Ectiva Sound On board Soundblaster Pro, AdLib, and Windows Sound System Compatible Solution Microsoft PC97 Compliant PnP 3D Stereo Sound with 64-bit Software Wavetable Voltage and Power ATX Power Supply Connector +12V Power Source for DC-FAN 3.3V DRAM Support Utilizes GTL+ Bus, Reducing Power Consumption and EMI Power Recovery After Interrupt Feature Wake-on-LAN Feature Header (3-pin) *** System Management (optional) National LM81 thermal management chip Intel LANDesk Client Manager Software Chassis Intrusion Detection capable. BIOS Award Plug 'n' Play flash BIOS Standard Deep Green / Energy Star / PC97 compliant Yellow LED for Sleep mode Year 2000 compliant Form Factor Smaller than MicroATX Design (9.6" x 6.9") Double Row ATX Connectors Type "V" I/O Shield (Intel Venus Compatible) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
